[Lifetime Warranty] 215846602 Refrigerator Defrost Timer

215846602 Refrigerator Defrost Timer

Key Features

• Genuine OEM factory part
• Electrical rating: 120V, 60Hz
• Controls a 30-minute defrost cycle, 3 times per day

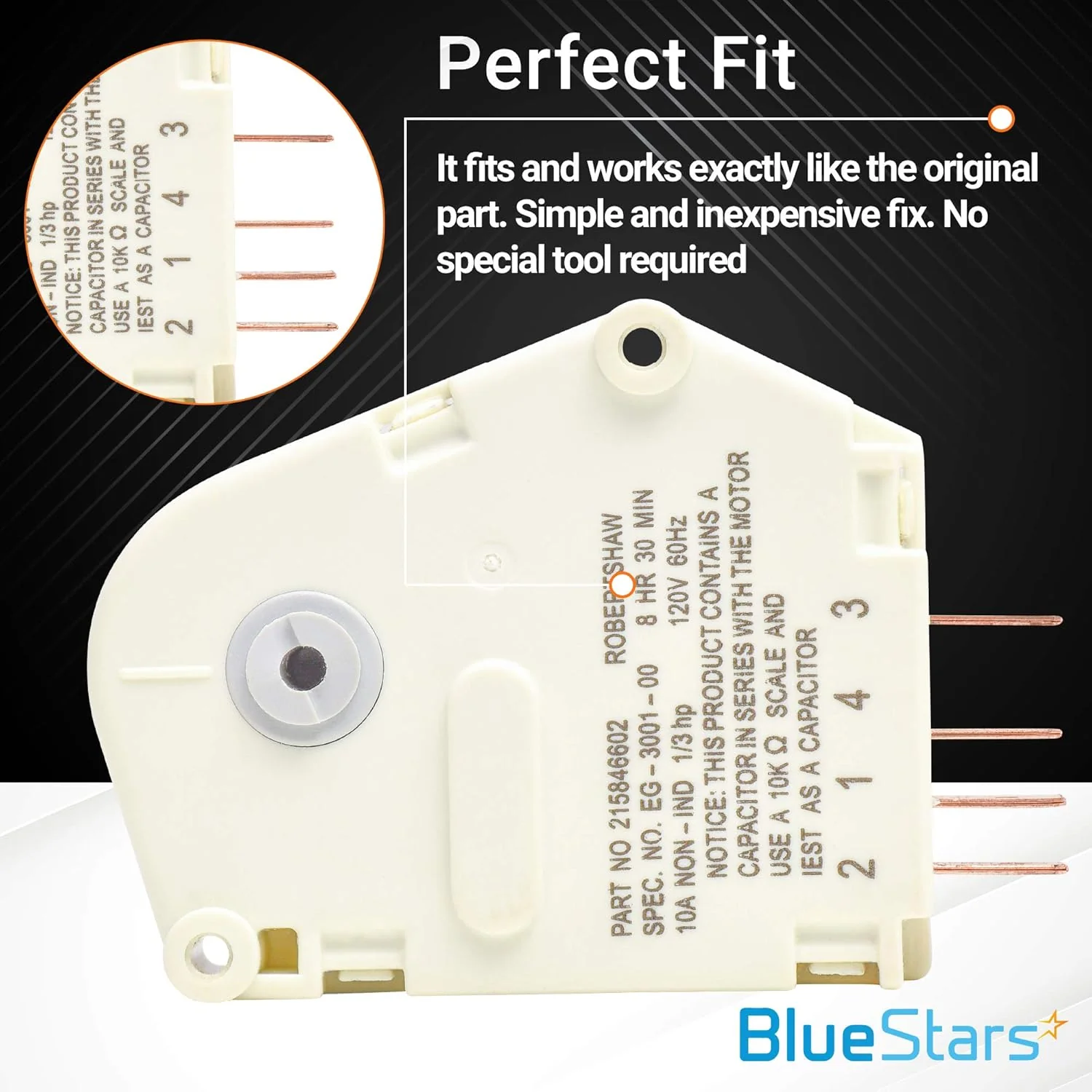

• Terminals are configured in a 2-1-4-3 pattern
• Features a manual-advance dial for testing

Replaces / Cross-Reference Part Numbers

• 215846602
• AP2111929
• EA423801
• PS423801

Compatibility & Fitment

• Fits select refrigerator models from brands including Crosley, Electrolux, Frigidaire, Gibson, Kenmore, Tappan, and White-Westinghouse.
• Verify compatibility with your appliance's model number before ordering.

When to Replace

• Excessive frost buildup in the freezer
• Refrigerator or freezer compartments are too warm
• Appliance will not advance out of the defrost cycle
• Appliance fails to initiate the defrost cycle

Installation Tips

• Disconnect the appliance from its power source before servicing.
• The timer is typically located behind the front kickplate grill on the lower left side.
• Required tools usually include a Phillips head screwdriver.
• After installation, manually advance the timer to ensure it properly activates both the cooling and defrost circuits.
