[Lifetime Warranty] 303160355P 303160355 Snow Blower Shear Pins and Nuts - Pack of 4

303160355P 303160355 Snow Blower Shear Pins and Nuts - Pack of 4

Key Features

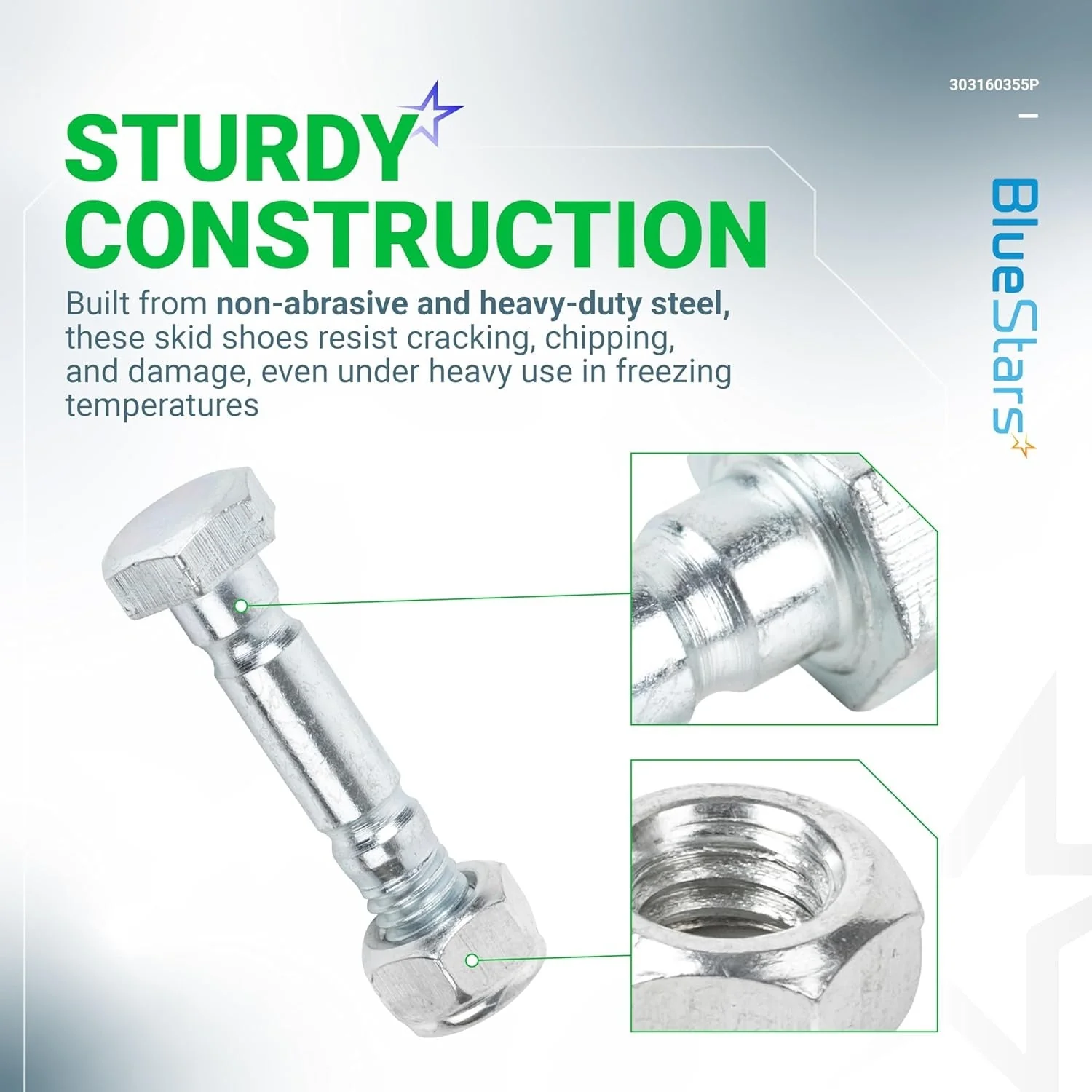

• Material: Low Carbon Steel
• Finish: Zinc coated for corrosion resistance

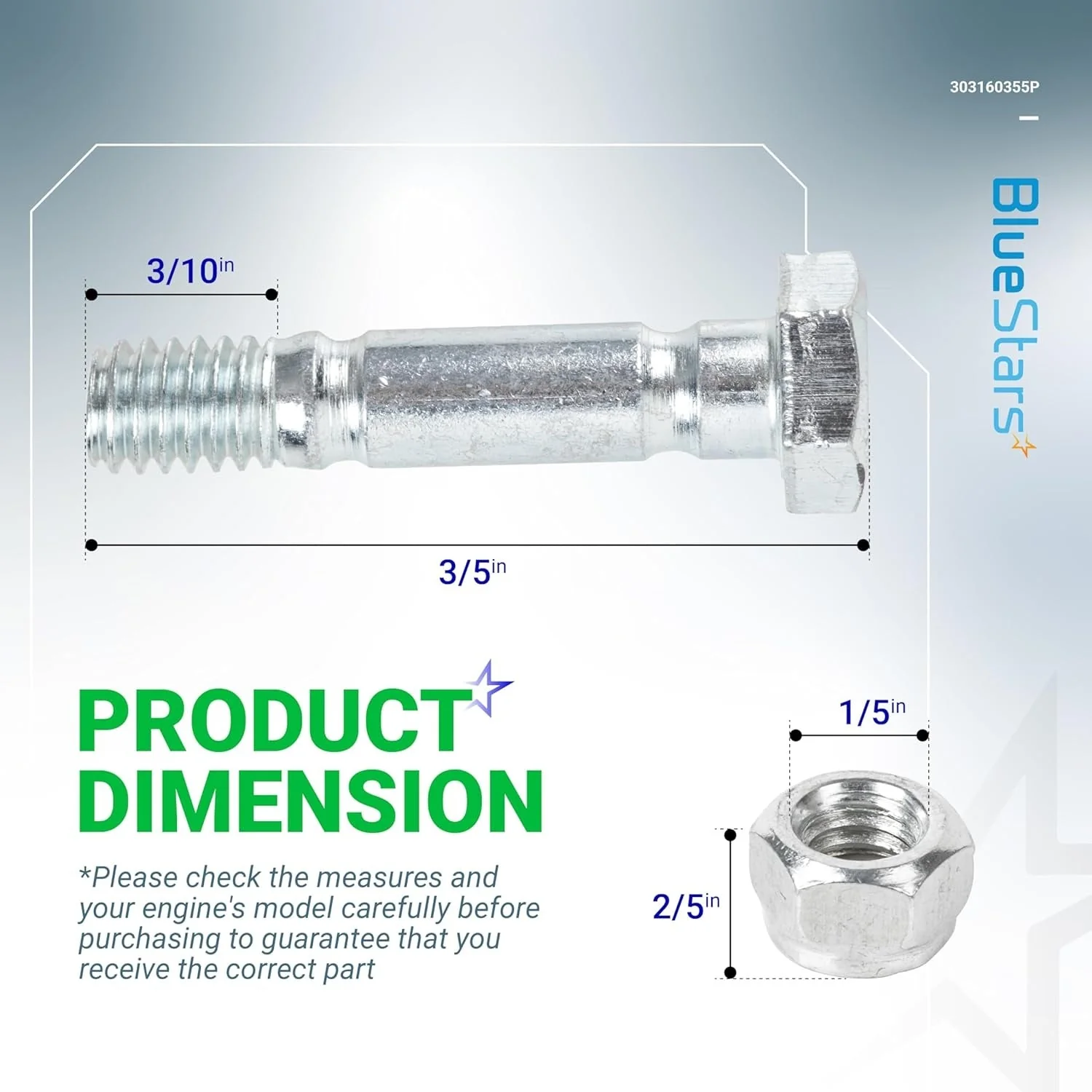

• Dimensions: 6 mm diameter pins

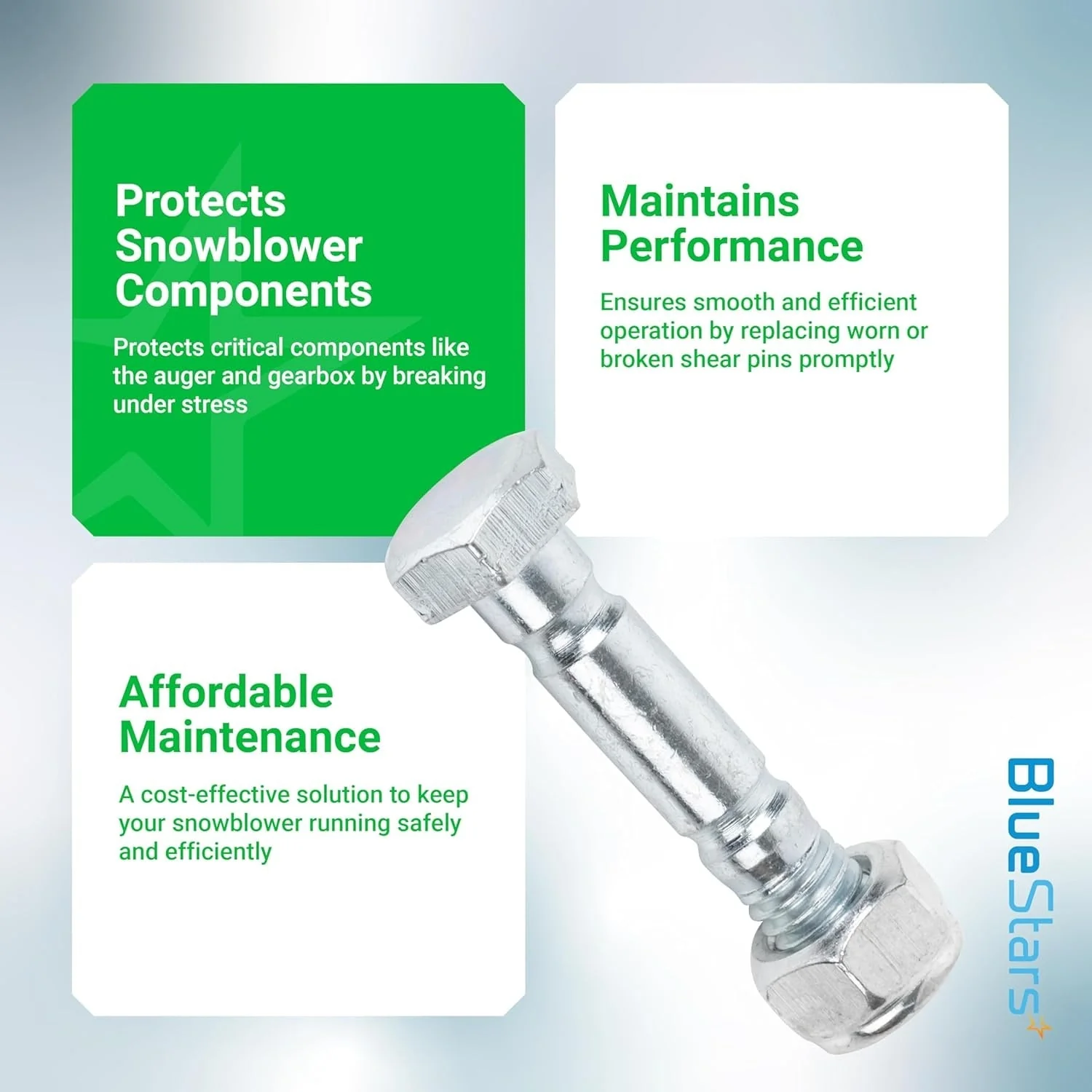

• Function: Designed to break under a specific load to protect the snow blower's auger and gearbox from damage
• Includes matching locknuts for a secure fit

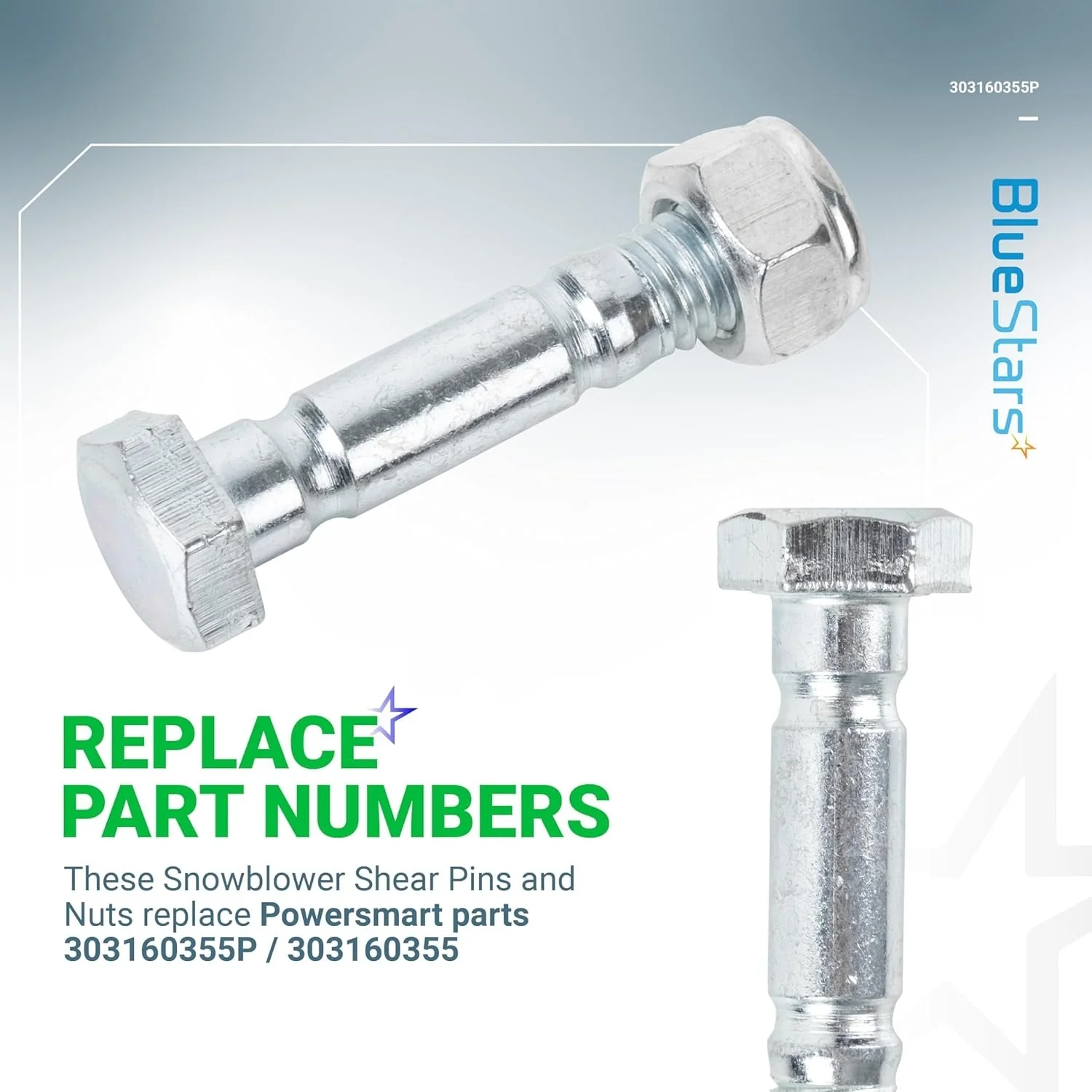

Replaces / Cross-Reference Part Numbers

• 303160355P
• 303160355

Compatibility & Fitment

• Brand: PowerSmart

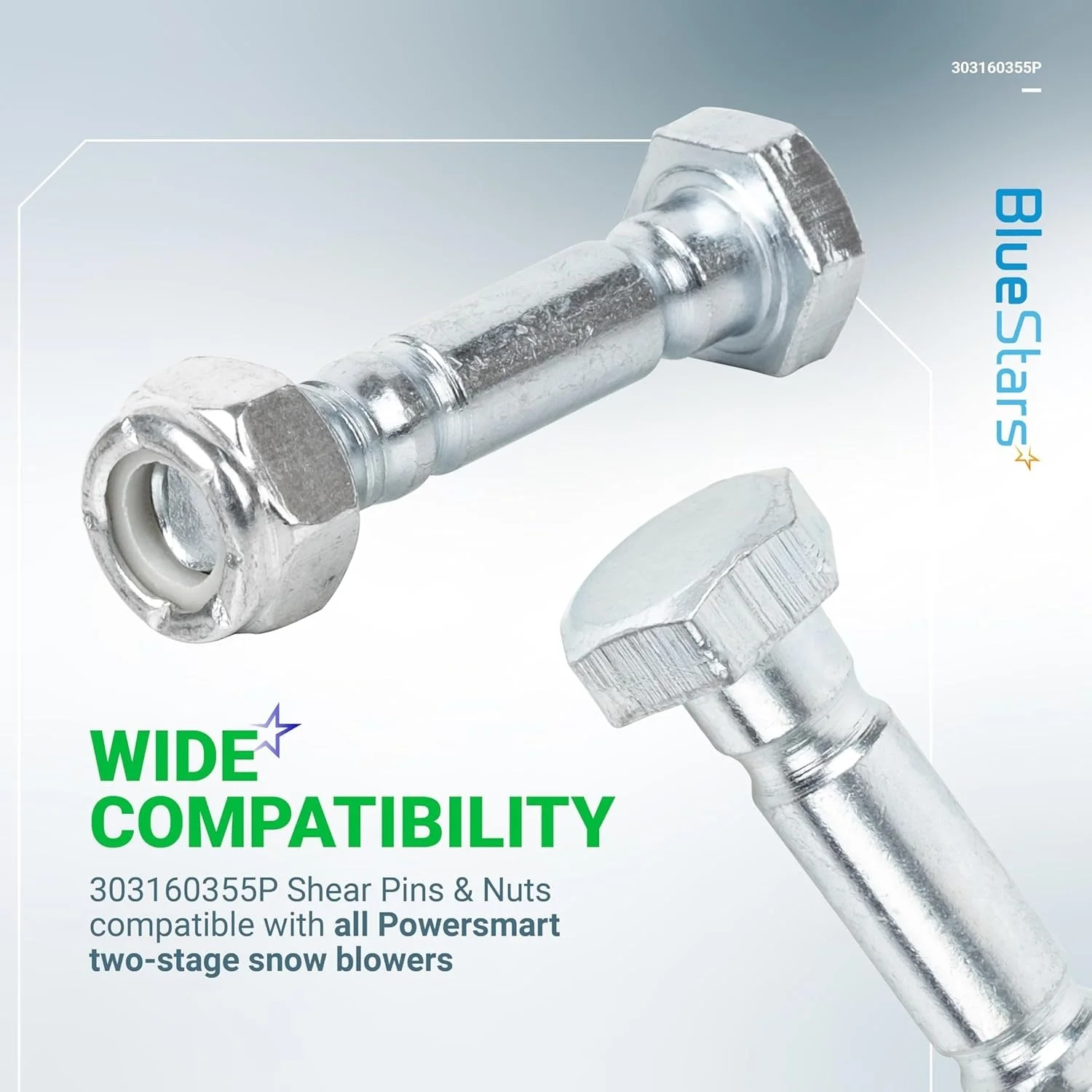

• Fits all PowerSmart two-stage snow blower models

When to Replace

• Replace immediately after a pin has sheared or broken
• A broken pin is indicated when the auger assembly no longer rotates while the engine is running
• Pins typically break when the auger strikes a hard object such as a rock, curb, or thick ice
• Keep spare pins on hand to minimize equipment downtime

Installation Tips

• For safety, stop the engine and disconnect the spark plug wire before servicing
• Align the hole on the auger shaft with the corresponding hole on the auger blade
• Insert the shear pin completely through the aligned holes
• Fasten the pin with the supplied locknut
• Do not substitute with a standard hardware bolt, as this will prevent the protective shear action and can lead to severe gearbox damage
