[Lifetime Warranty] 69W43 Furnace Flame Sensor - Pack of 2

69W43 Furnace Flame Sensor - Pack of 2

Key Features

• Package contains two (2) 69W43 flame sensors.
• Detects burner flame to enable safe and continuous furnace operation.

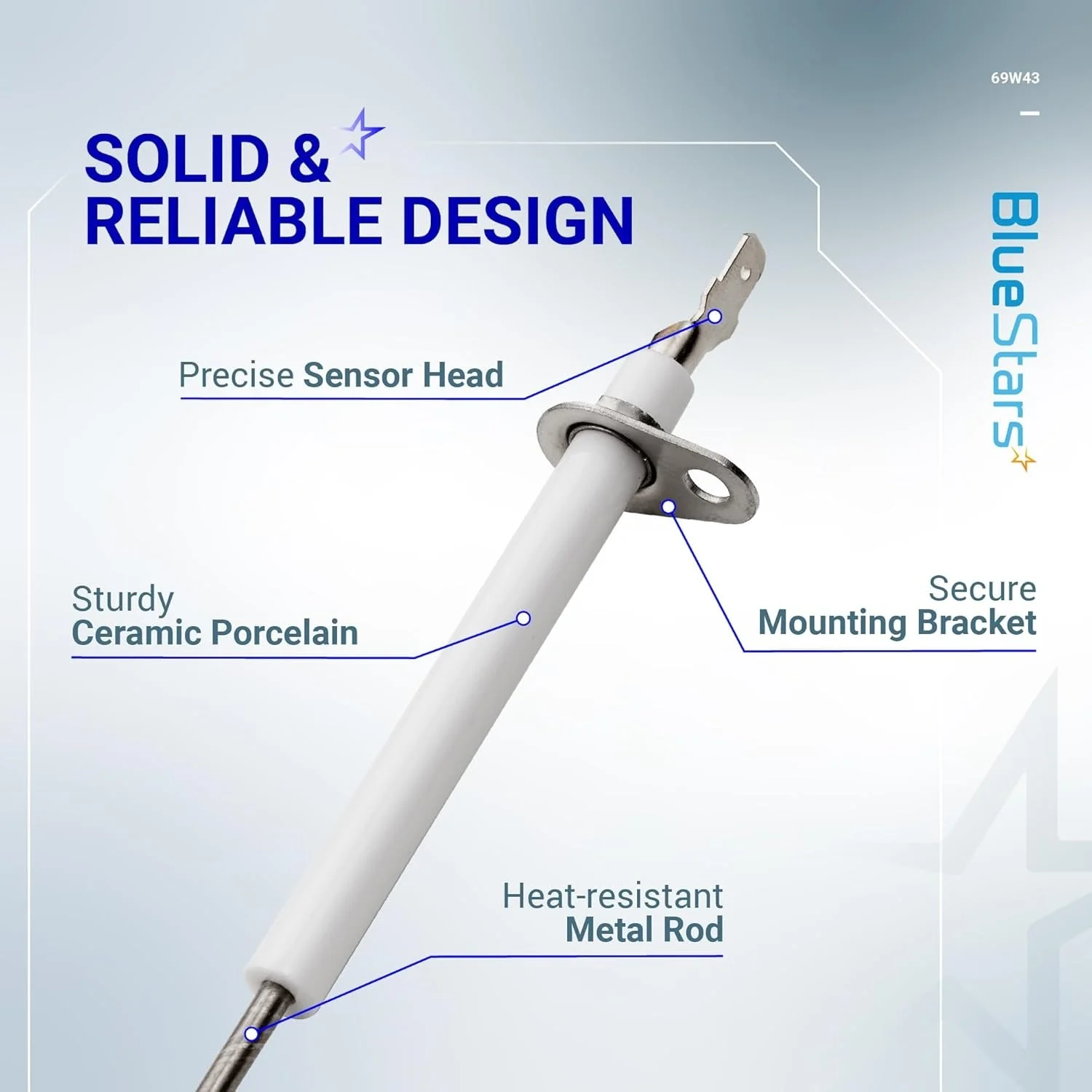

• Constructed with a durable cermet insulator and a corrosion-resistant sensing rod.
• Angled probe design for direct replacement and optimal positioning.

Replaces / Cross-Reference Part Numbers

• 69W43
• 69W4301
• LB-74940B
• LB74940B
• PSE-L79 (102431-02)

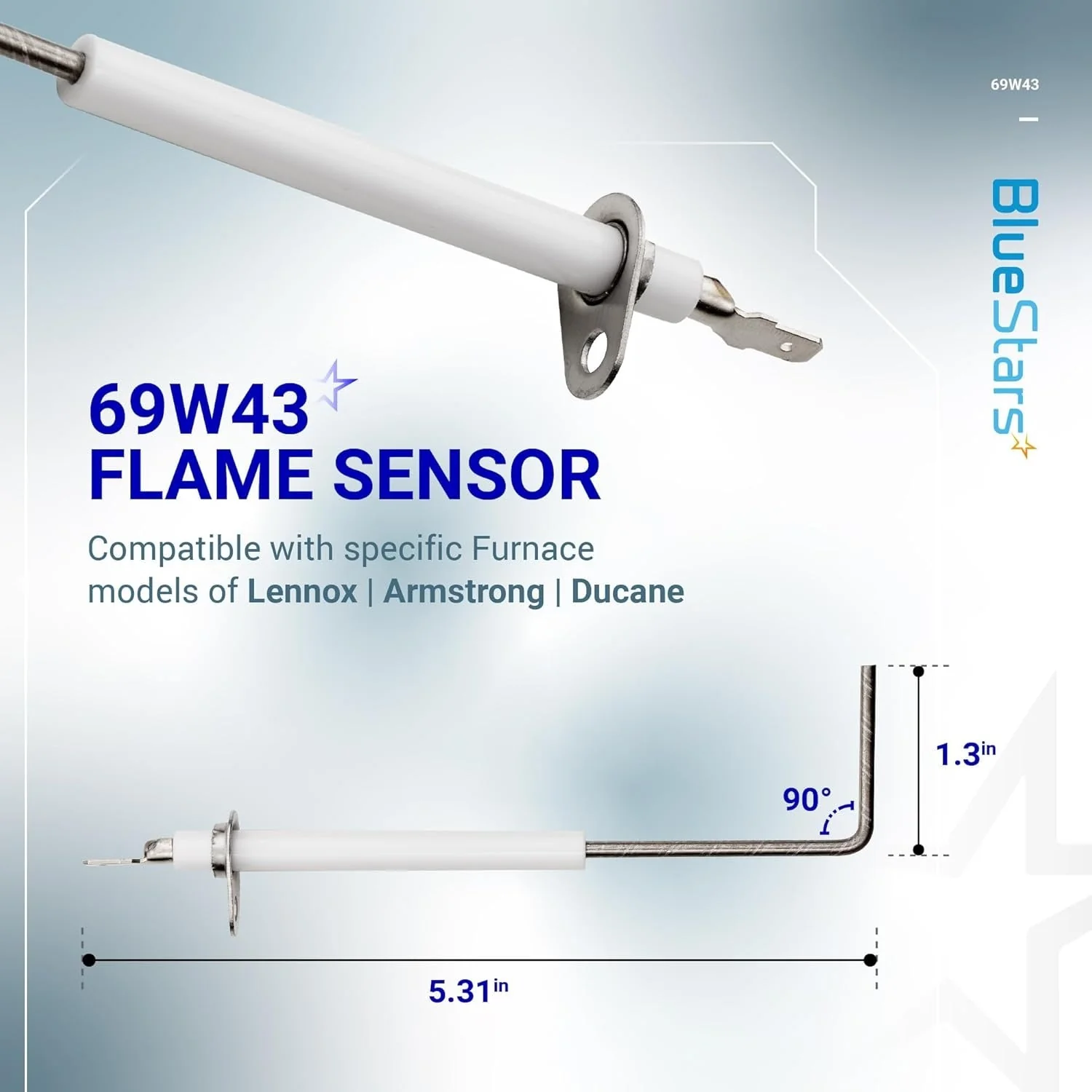

Compatibility & Fitment

• Designed as a direct replacement part for specific furnace models from:
• Lennox
• Ducane
• Armstrong
• Note: Always confirm compatibility by checking your equipment's service manual and part number.

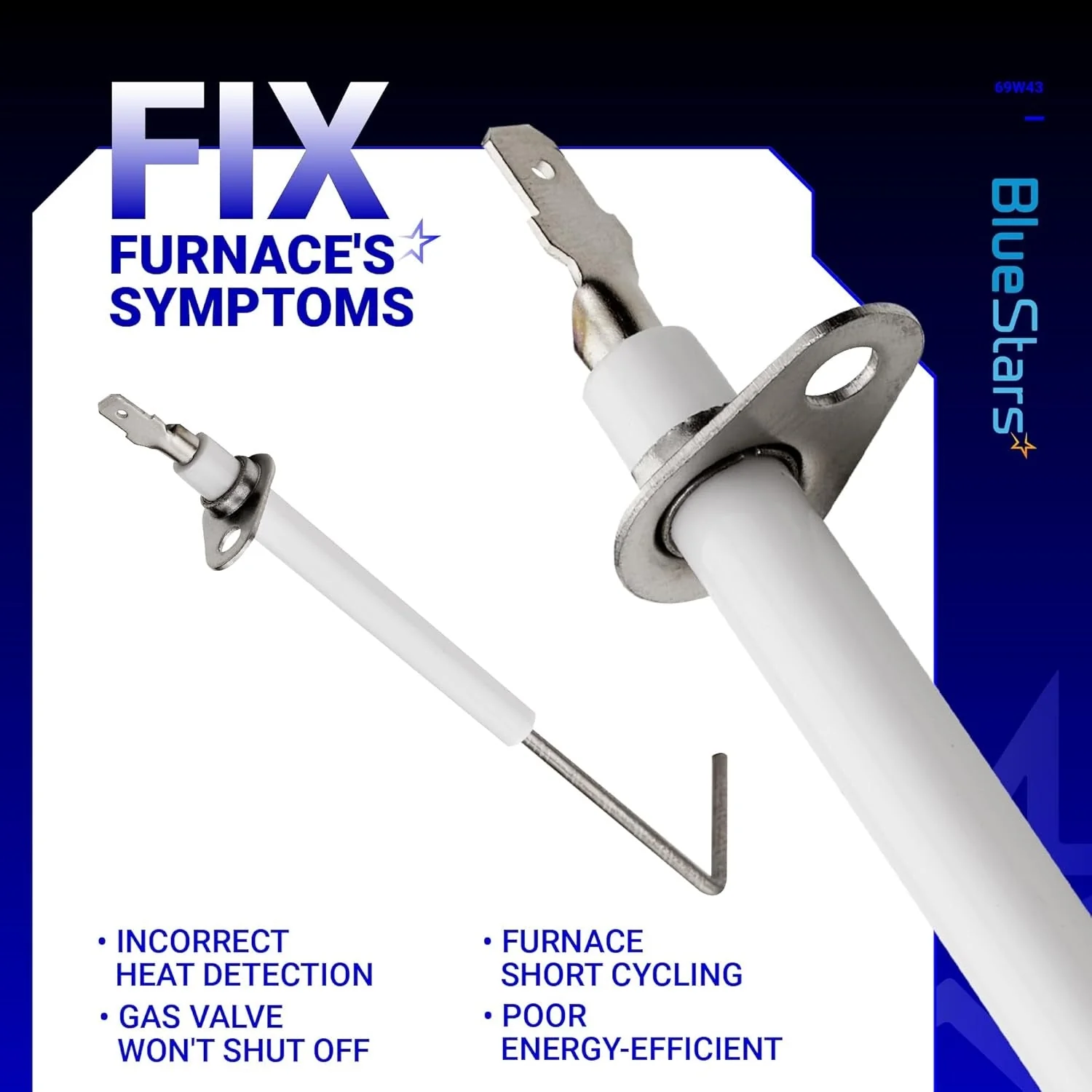

When to Replace

• Furnace ignites but shuts down after a few seconds.
• Burner flame will not stay lit.
• Visible damage, such as a cracked porcelain insulator on the existing sensor.
• Heavy carbon buildup or corrosion on the sensor rod that cleaning does not resolve.

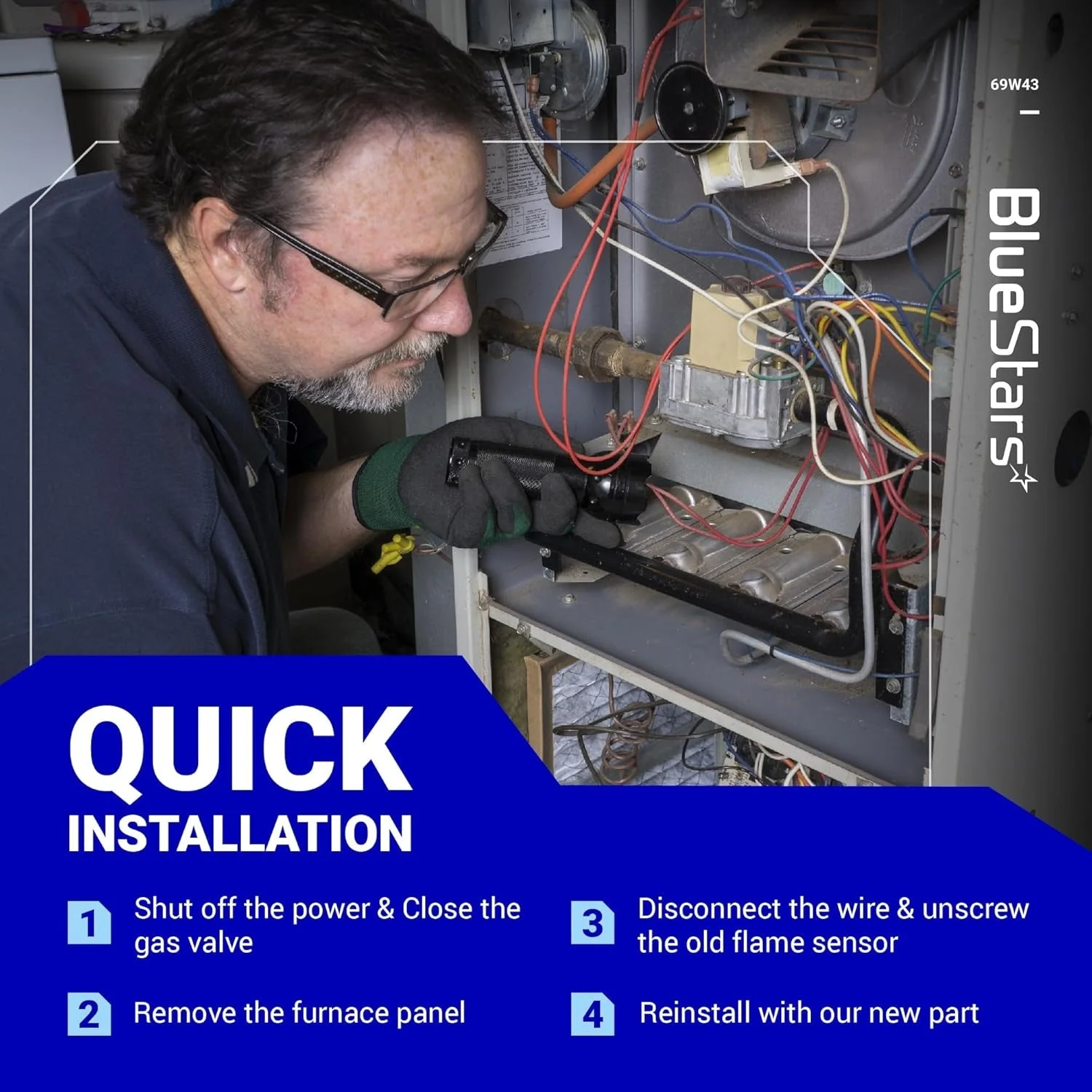

Installation Tips

• Disconnect all electrical power to the furnace unit before beginning installation.
• Handle the new sensor by the porcelain base to avoid contaminating the metal rod with skin oils.
• Ensure the sensor rod is properly positioned to be enveloped by the burner flame during operation.
• Inspect the connecting wire for damage and ensure a secure connection.
