[Lifetime Warranty] DD81-01634B Dishwasher Door Latch

DD81-01634B Dishwasher Door Latch

Key Features

• Secures the dishwasher door to prevent leaks and ensure proper operation.
• Integrates a switch that signals the main control board when the door is closed, allowing the wash cycle to begin.

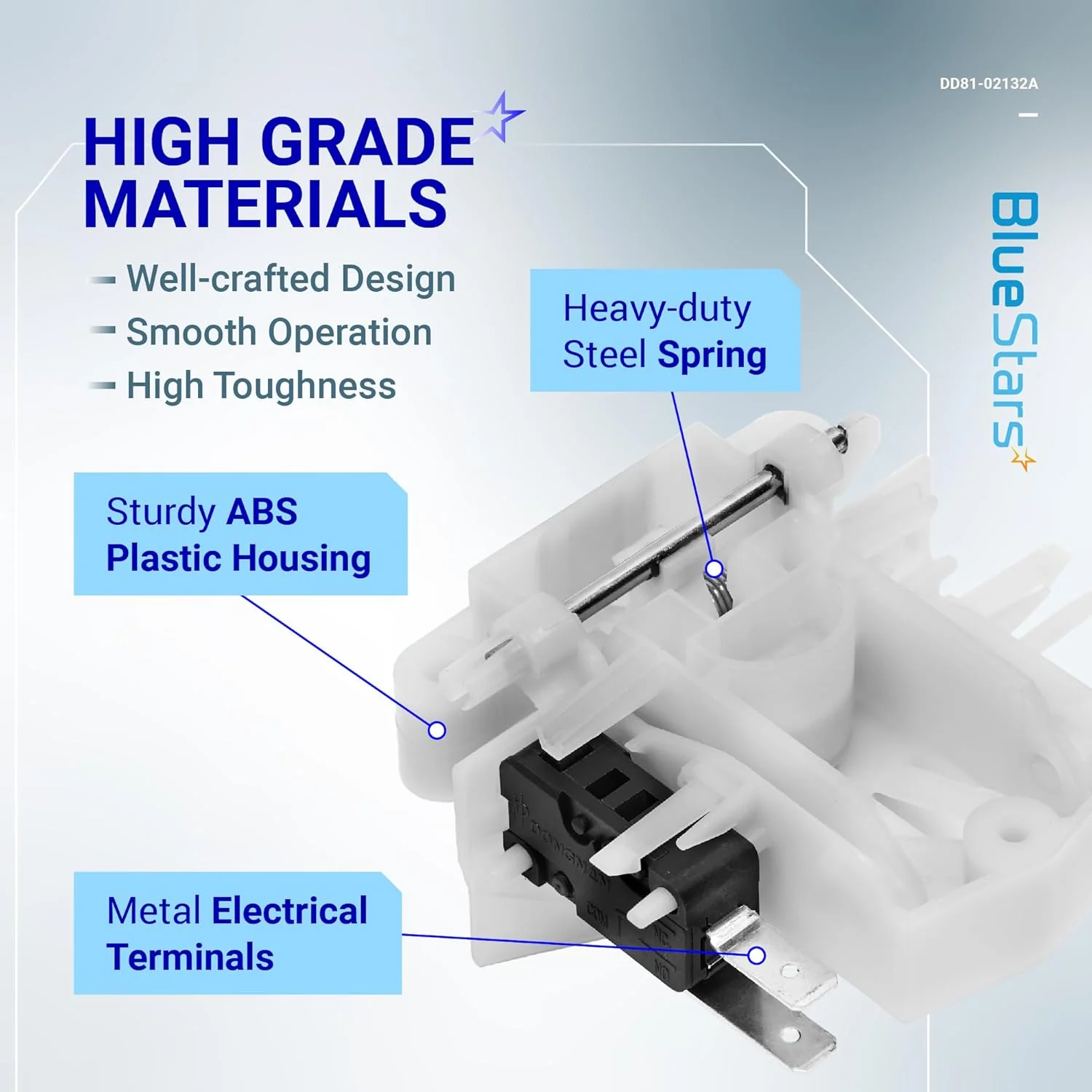

• Constructed from durable plastic and metal components.

Replaces / Cross-Reference Part Numbers

• DD81-01629A
• DD81-02132A

Compatibility & Fitment

• Designed for specific Samsung dishwasher models.
• Compatible models include: DW80F600UTS, DW80F600UTW/AA, DW80K5050UB, DW80K5050US, DW80K7050UG.
• Confirm fitment by checking your dishwasher's original part number.

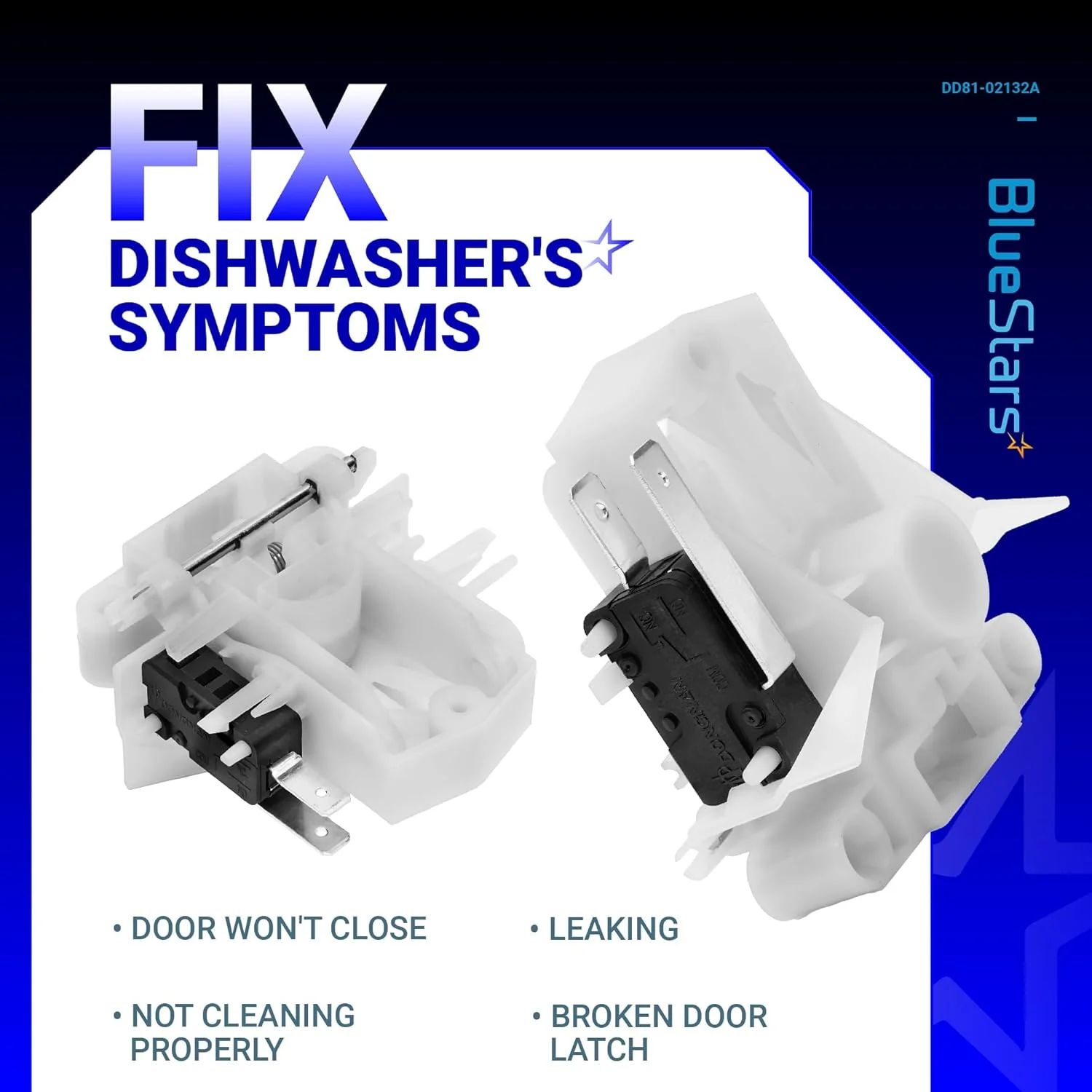

When to Replace

• The dishwasher door will not latch or stay closed.
• The dishwasher will not start or respond when the start button is pressed.
• The door latch mechanism is visibly cracked, damaged, or broken.
• The dishwasher stops mid-cycle.

Installation Tips

• Disconnect the dishwasher from power and water sources before beginning the repair.
• Access the latch by removing the screws on the inner door panel.
• Note the orientation and connection of the wiring before removing the old latch.
• Ensure the new latch is securely mounted and electrical connectors are firmly attached.
