[Lifetime Warranty] W10300924 Dishwasher Door Seal Gasket

W10300924 Dishwasher Door Seal Gasket

Key Features

• Creates a watertight seal between the dishwasher tub and the door.
• Prevents water from leaking during wash cycles.

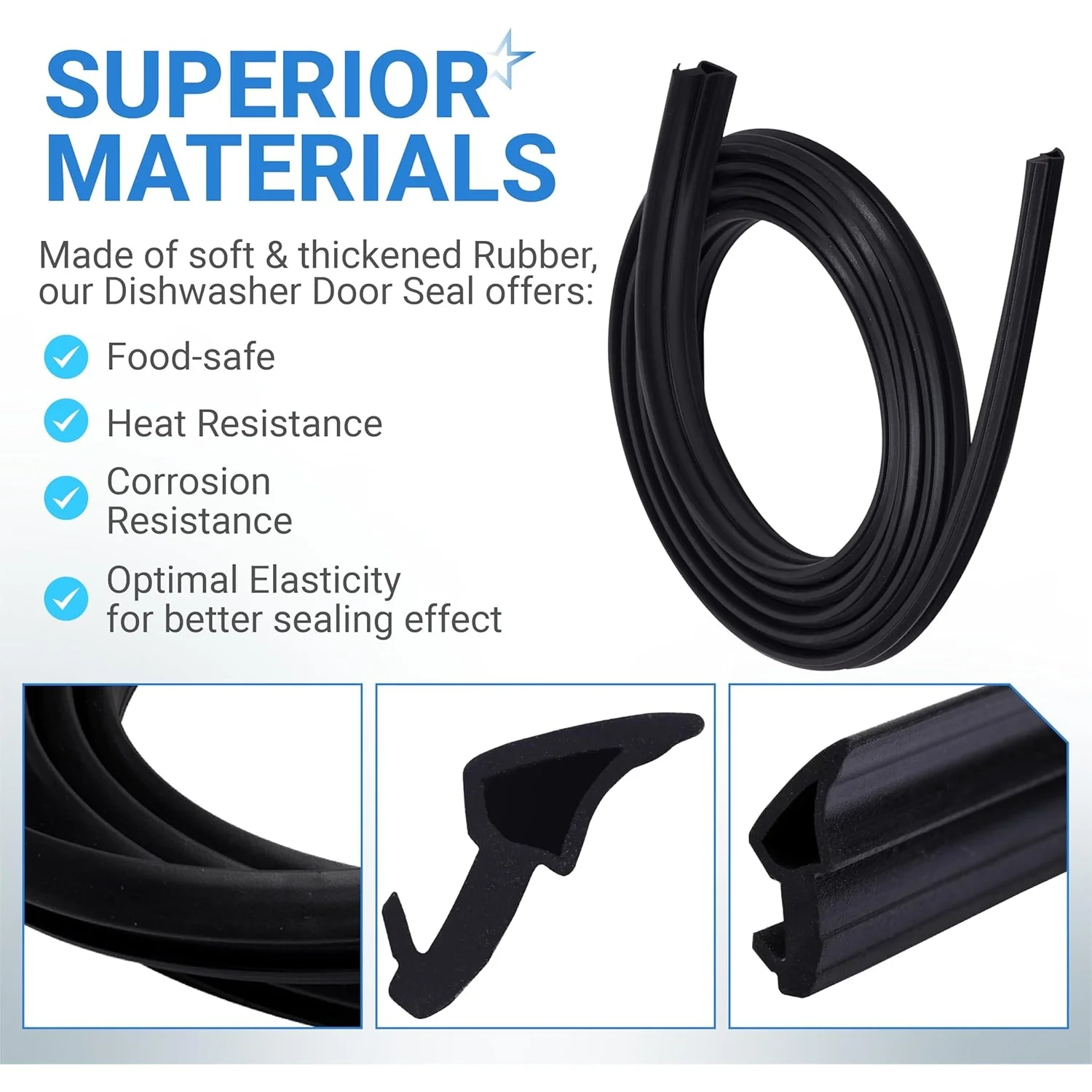

• Made from durable, flexible rubber material.
• Approximate length: 71 inches, designed to stretch for a snug fit.

Replaces / Cross-Reference Part Numbers

• W11177741
• W10300924V
• W10660528

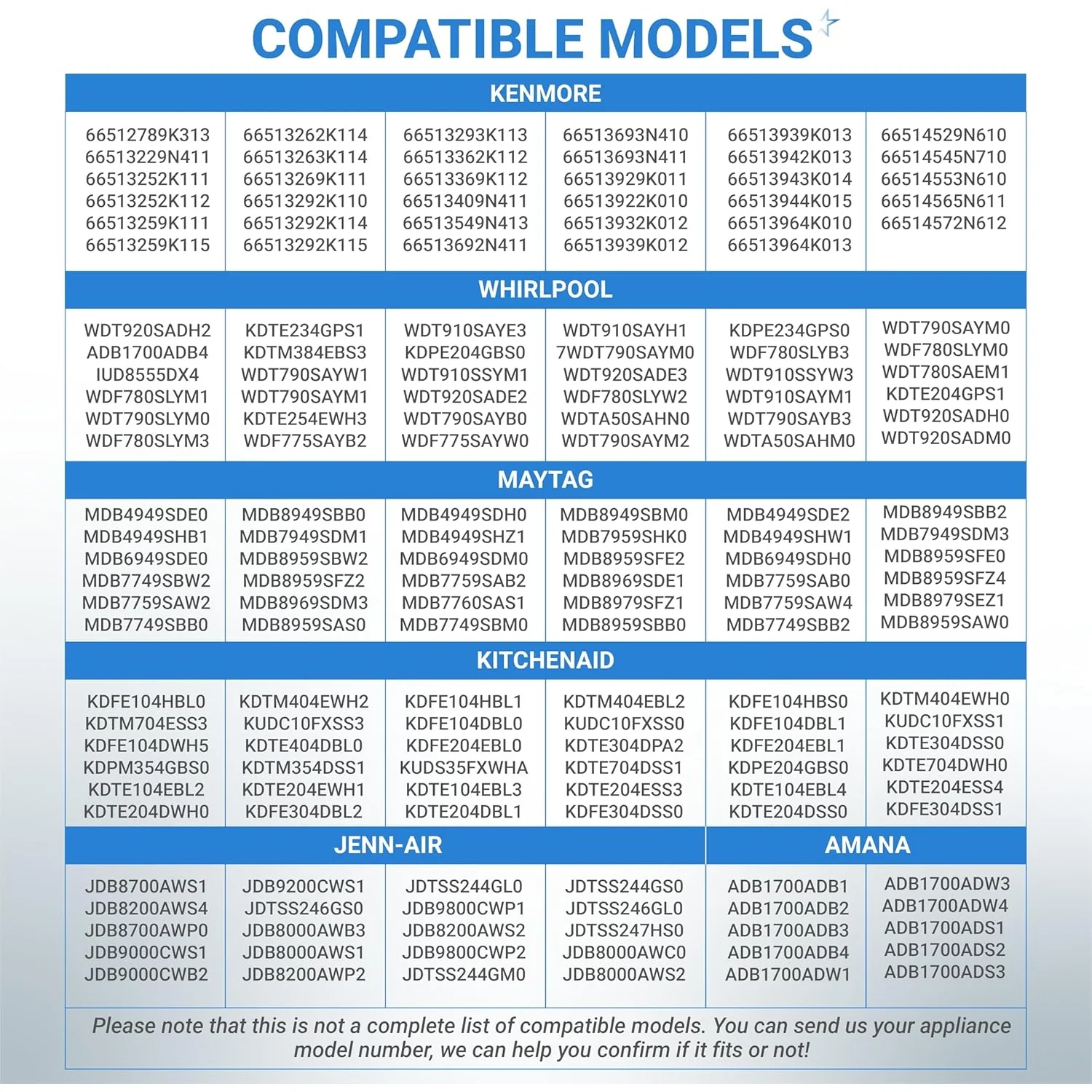

Compatibility & Fitment

• Fits select dishwasher models from brands including Whirlpool, Kenmore, KitchenAid, and Maytag.
• Confirm fitment by matching your original part number.

When to Replace

• Water is observed leaking from the dishwasher door.
• The existing gasket is visibly torn, cracked, brittle, or deformed.
• The door no longer seals tightly when closed.

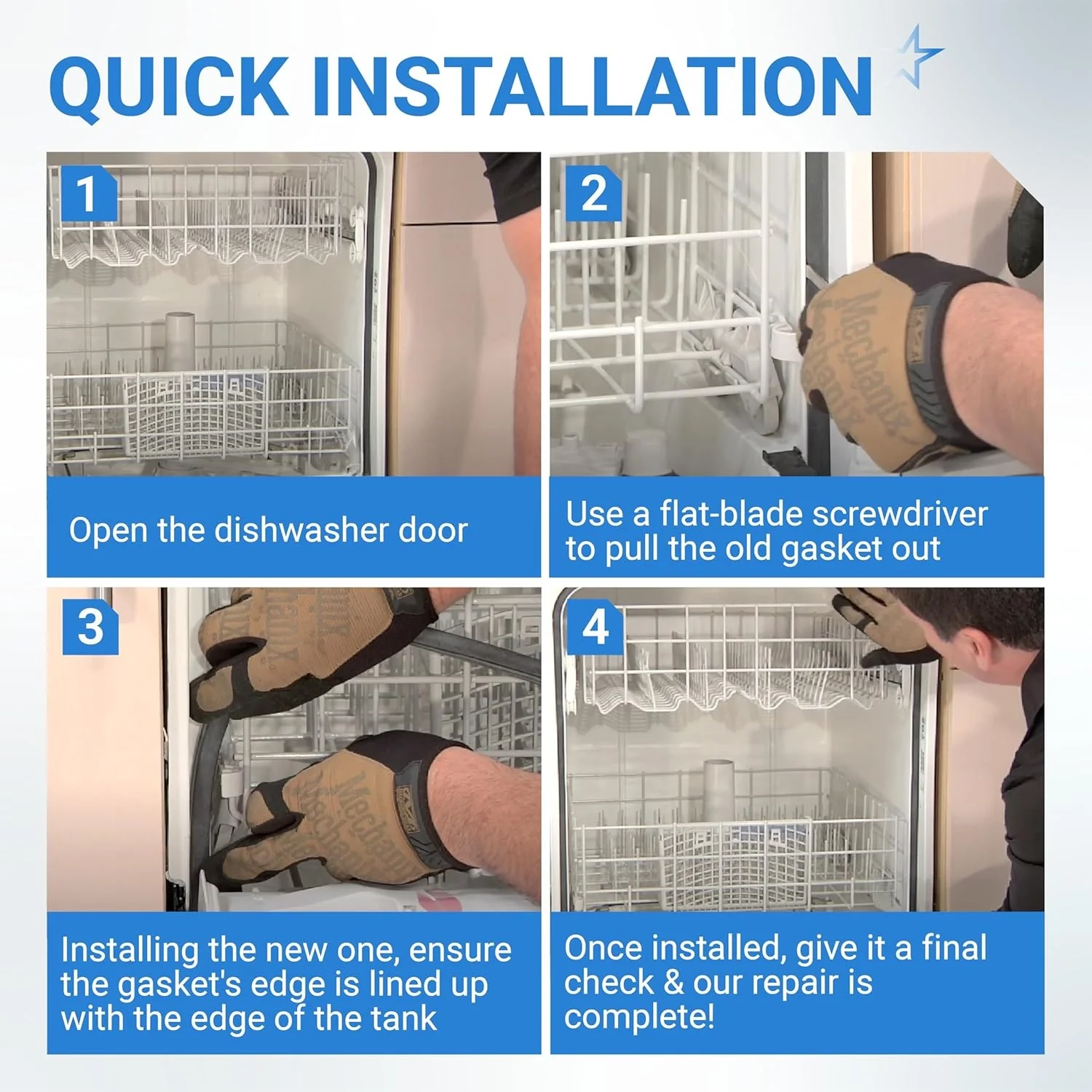

Installation Tips

• Disconnect the dishwasher from its power source before starting the repair.
• Remove the old gasket by pulling it out of the channel.
• Clean any debris or residue from the gasket channel.
• Press the new gasket firmly into the channel, starting at the top center and working down both sides.
• Do not stretch the gasket during installation.
• After installation, shut the door for several hours to help the gasket conform and seat properly.
