[Lifetime Warranty] WR60X10141 Refrigerator Evaporator Fan Motor

WR60X10141 Refrigerator Evaporator Fan Motor

Key Features

• Function: Circulates air over the evaporator coils to maintain consistent freezer and refrigerator temperatures.
• Electrical Rating: 115V, 3W, 60Hz

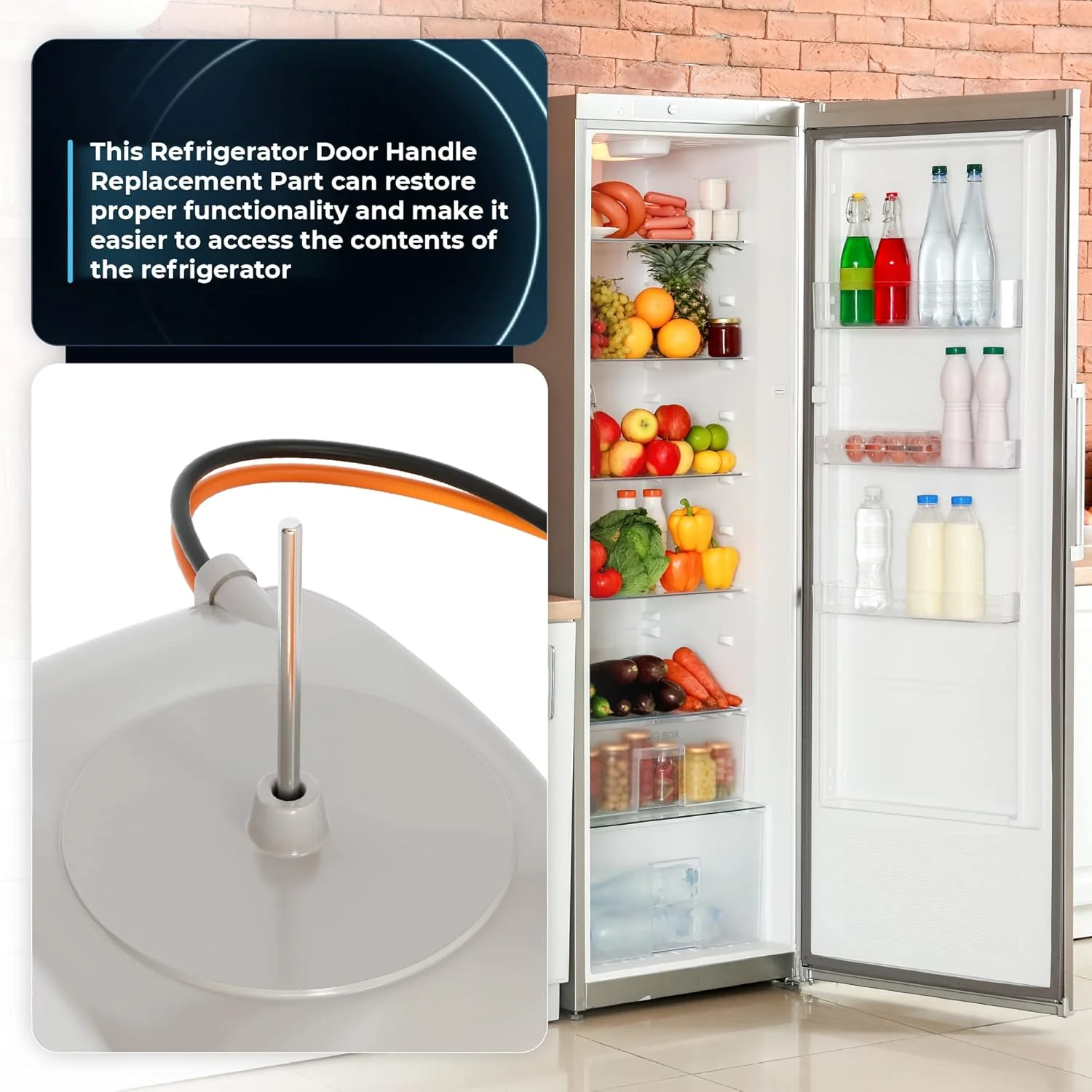

• Shaft Length: 1 3/8 inches

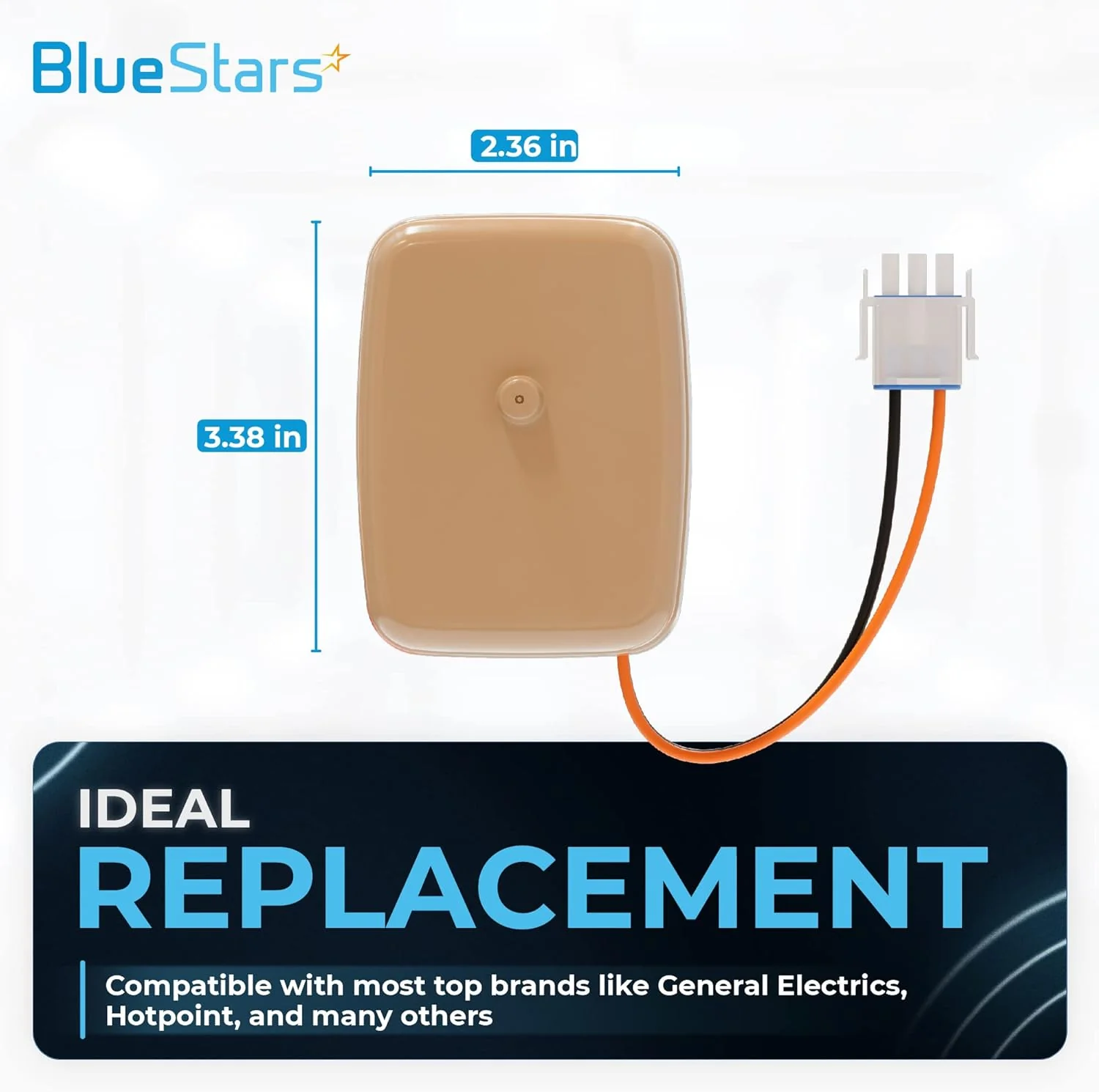

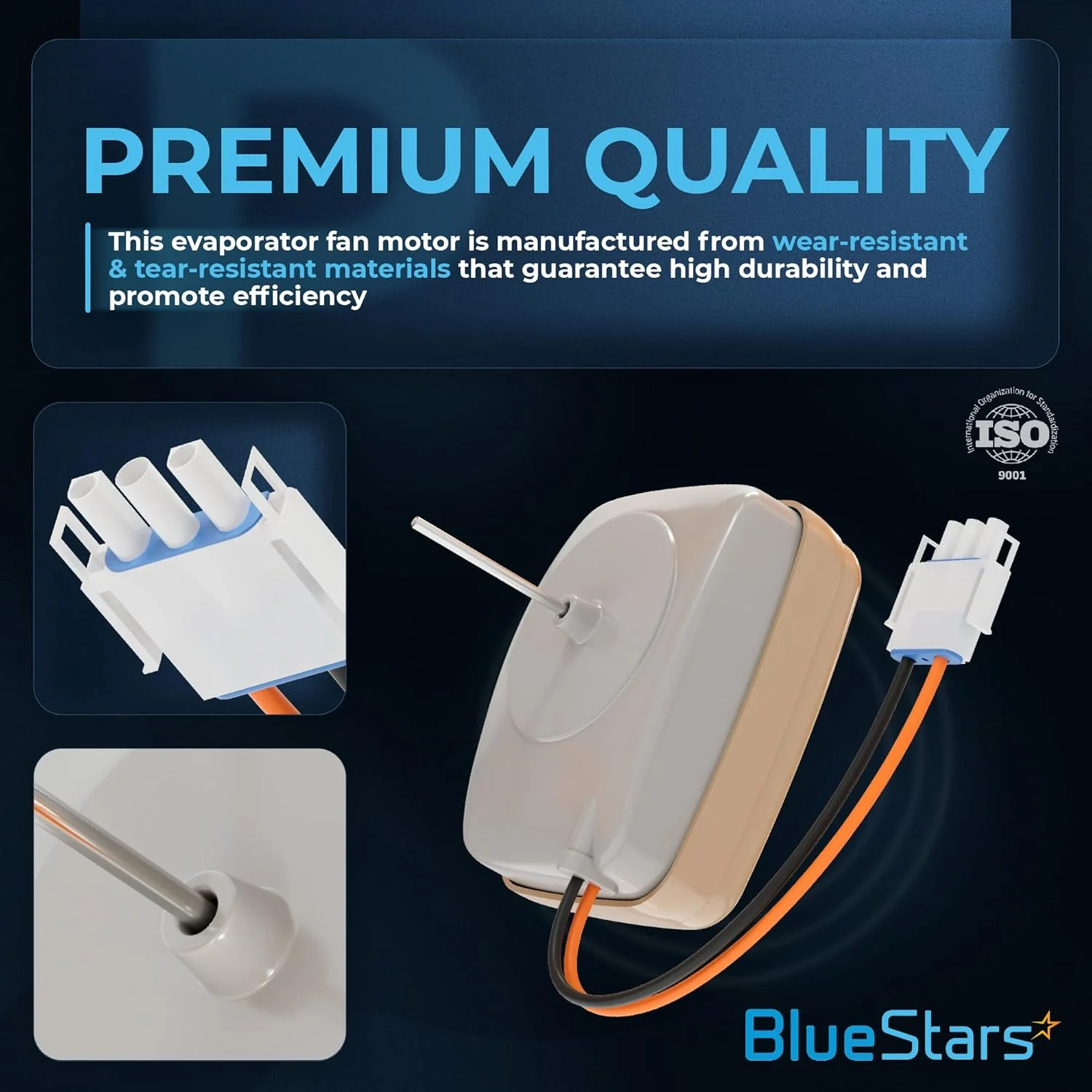

• Includes motor and wire harness assembly with a 3-pin connector.

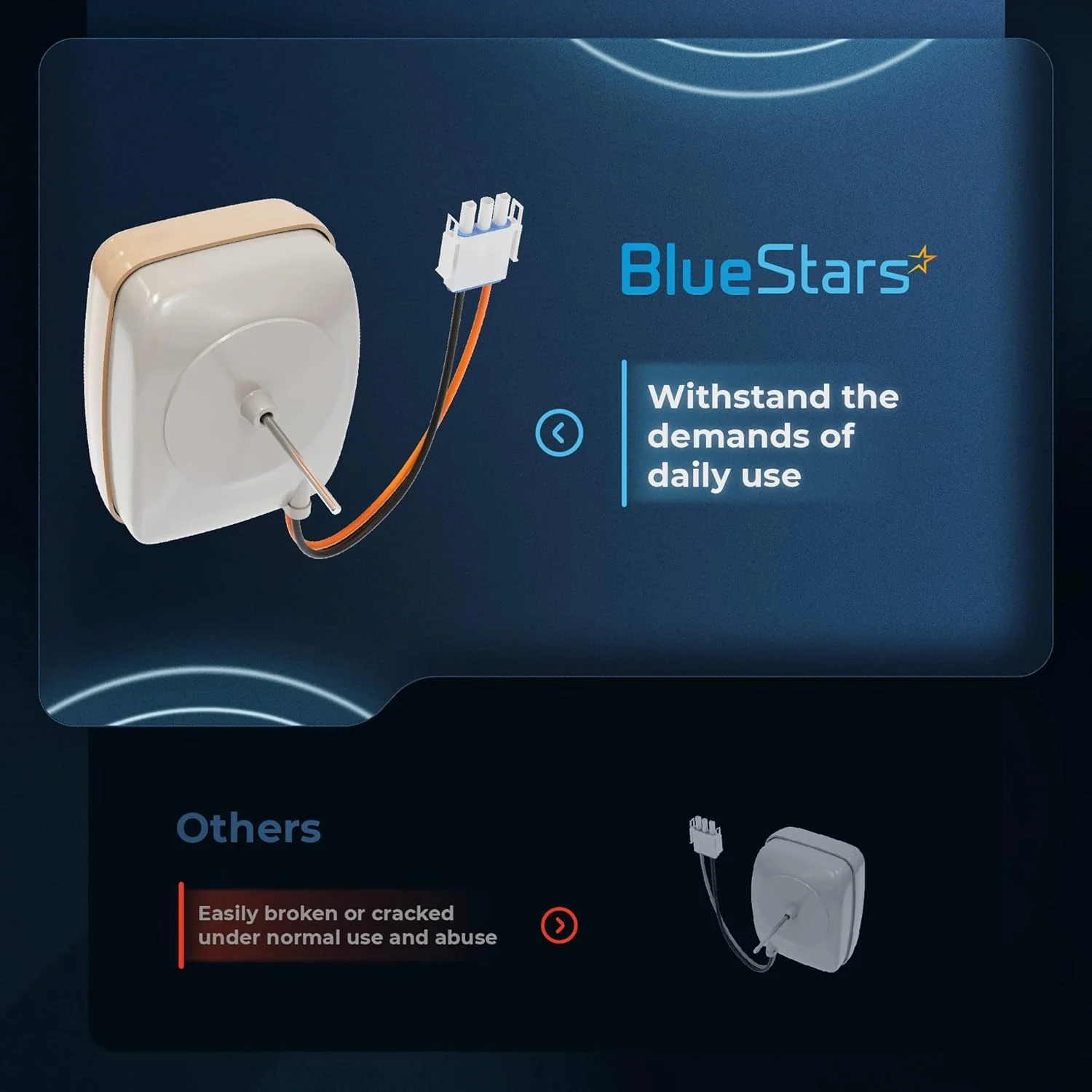

• Material: Plastic motor housing

Replaces / Cross-Reference Part Numbers

• WR60X10045
• WR60X10046
• WR60X10138
• WR60X10204
• WR60X10346
• WR60X23584

Compatibility & Fitment

• Designed for select refrigerator models from brands including General Electric, Hotpoint, and Americana.
• Verify compatibility by confirming your appliance's model number against the part number list.
• Note: This replacement part may differ in appearance from the original component but is functionally equivalent.

When to Replace

• Refrigerator or freezer section is not cooling properly.
• Unusual noises such as squealing, humming, or grinding coming from the freezer area.
• The fan blade is not spinning when the compressor is running.
• Frost buildup on the evaporator coils.

Installation Tips

• Disconnect the refrigerator from its power source before starting the installation.
• Access the motor by removing the cover panel at the back of the freezer compartment.
• Take a picture of the old part's wiring and orientation before removal to aid in installation.
• Ensure the fan blade is properly seated on the new motor shaft and spins freely without obstruction.
