[Lifetime Warranty] 12V 4-Terminal 117-1197 Starter Solenoid

12V 4-Terminal 117-1197 Starter Solenoid

Key Features

• Voltage: 12V DC
• Terminals: 4

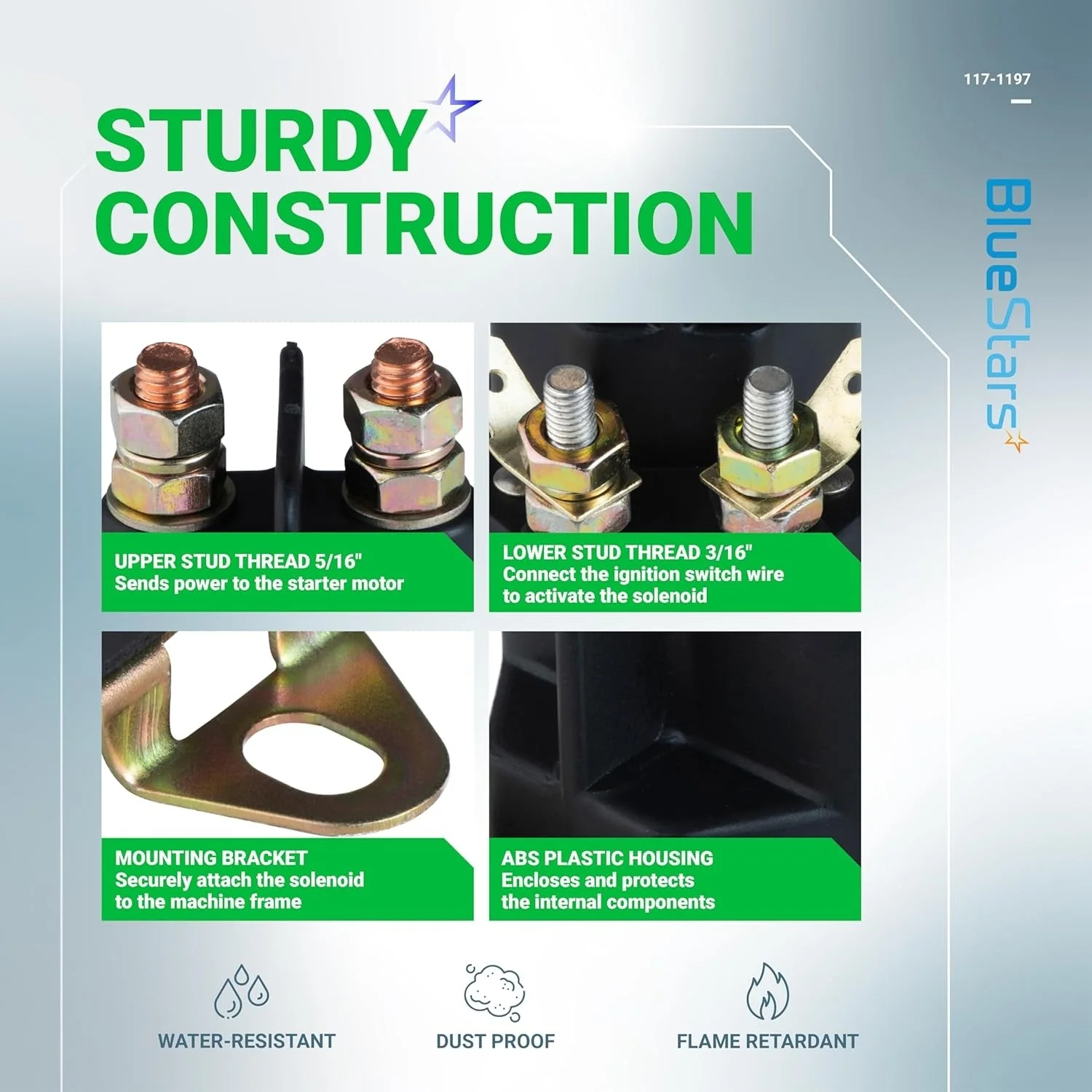

• Upper Stud Thread: 5/16 inch
• Lower Stud Thread: 3/16 inch

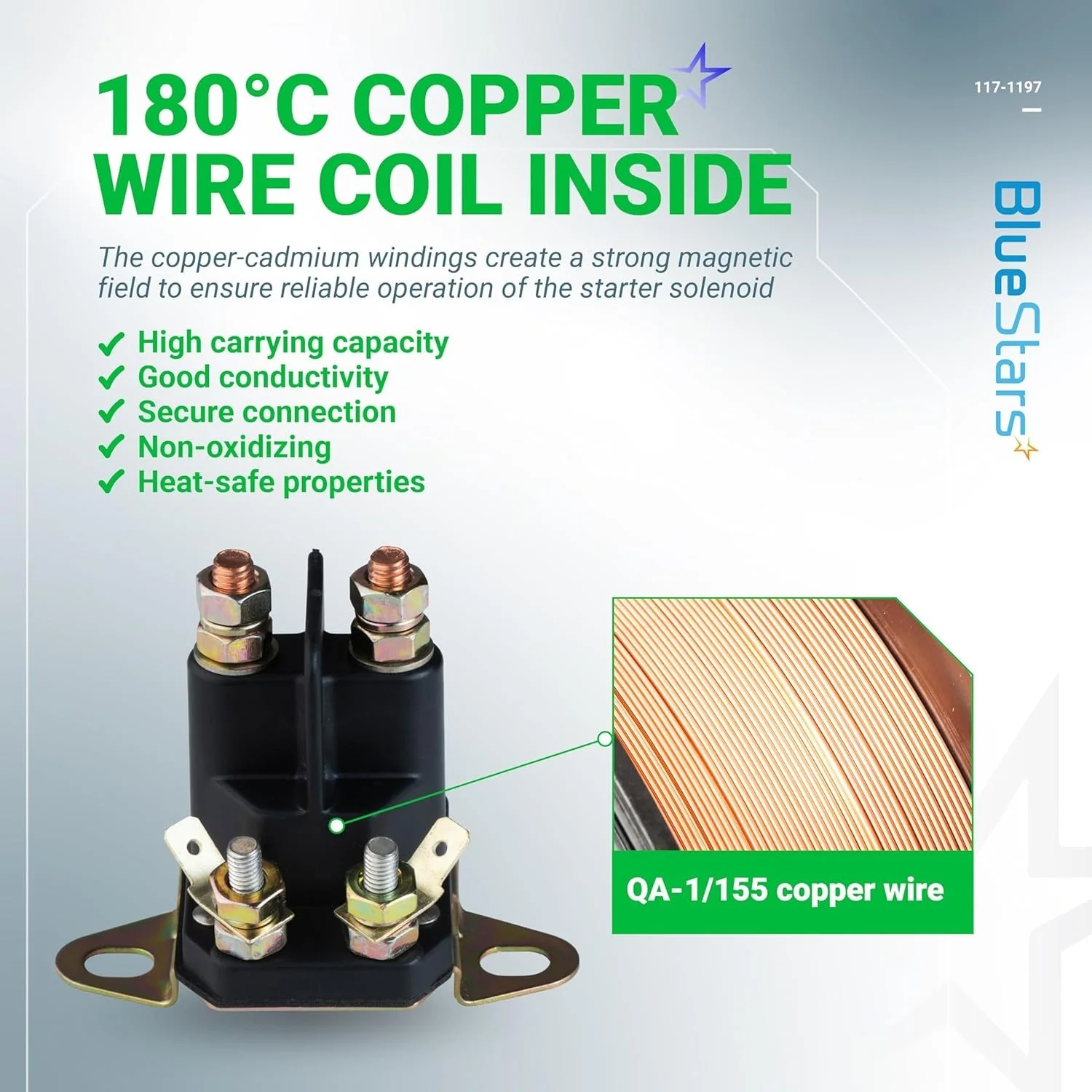

• Constructed with a brass coil and silver-plated contacts for electrical conductivity and corrosion resistance.

Replaces / Cross-Reference Part Numbers

• Toro: 117-1197

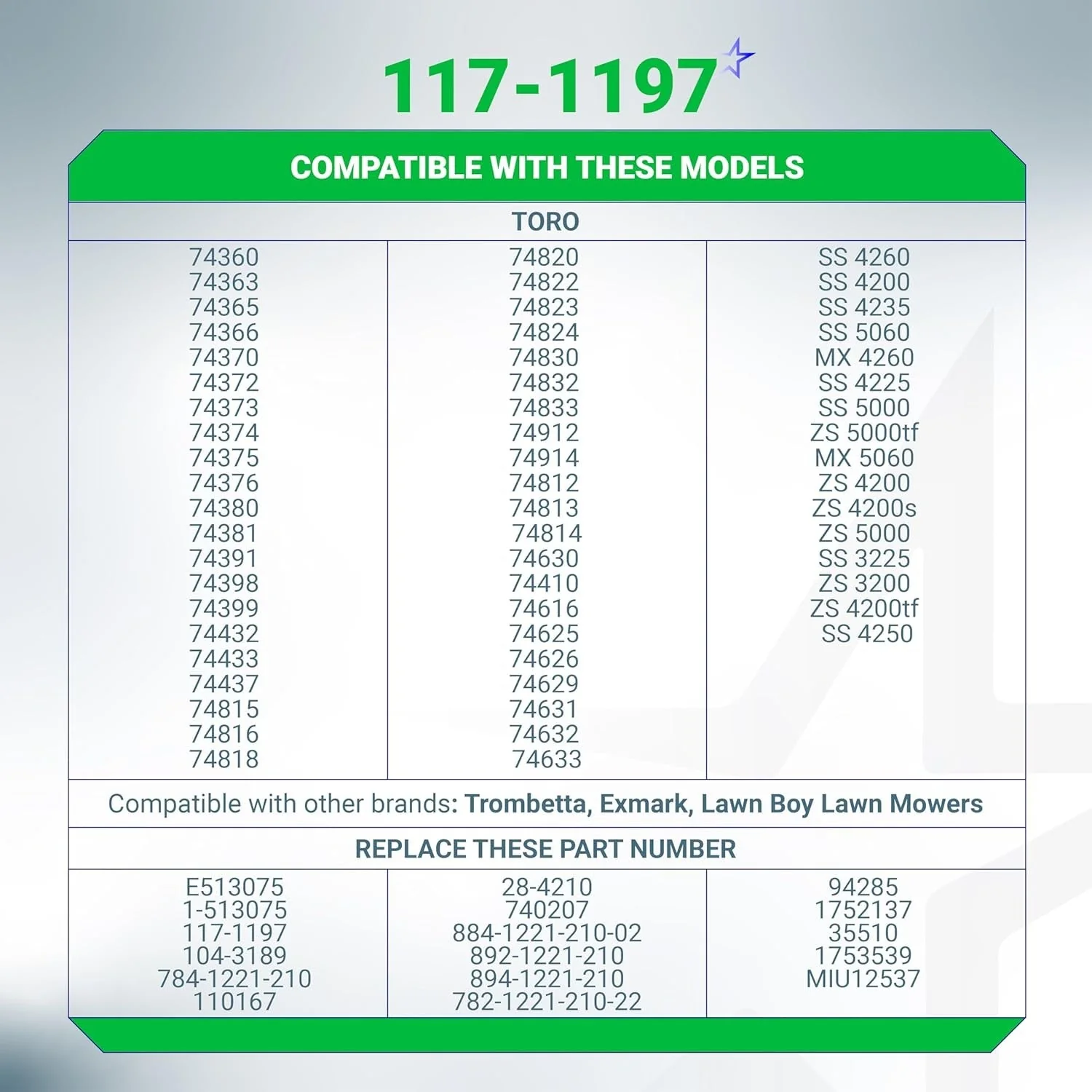

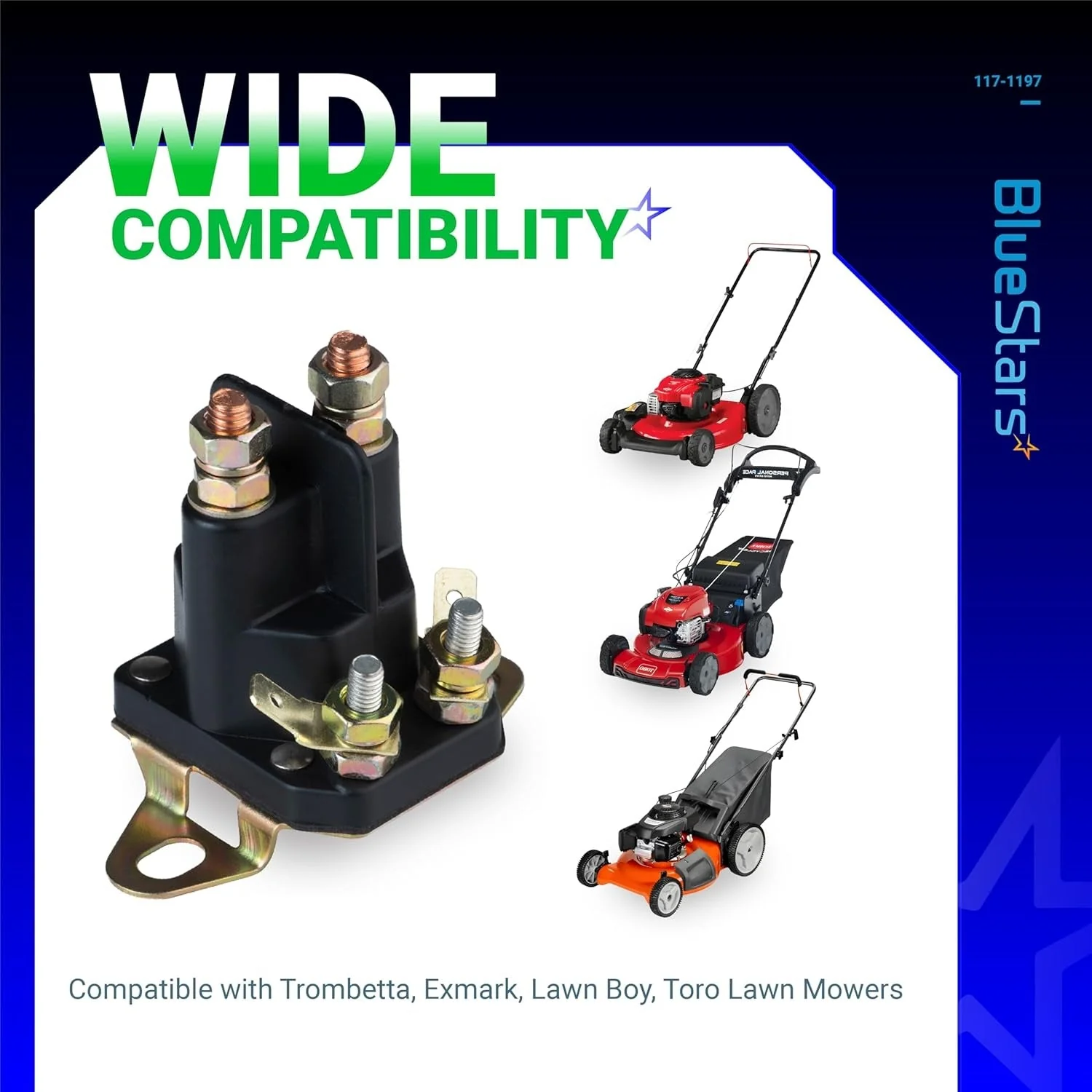

Compatibility & Fitment

• Fits various models from brands including Toro, Exmark, and Lawn Boy.
• Select Toro Models:
  • TimeCutter: SS 4200, SS 4225, SS 4235, SS 4260, SS 5000, SS 5060, MX 4260
  • Titan
  • GrandStand
  • Commercial Walk-Behind Mowers

When to Replace

• Engine does not crank when the ignition key is turned.
• An audible clicking sound is heard from the solenoid, but the starter does not engage.
• Starter motor continues to run after the ignition key is released.
• Intermittent starting problems.

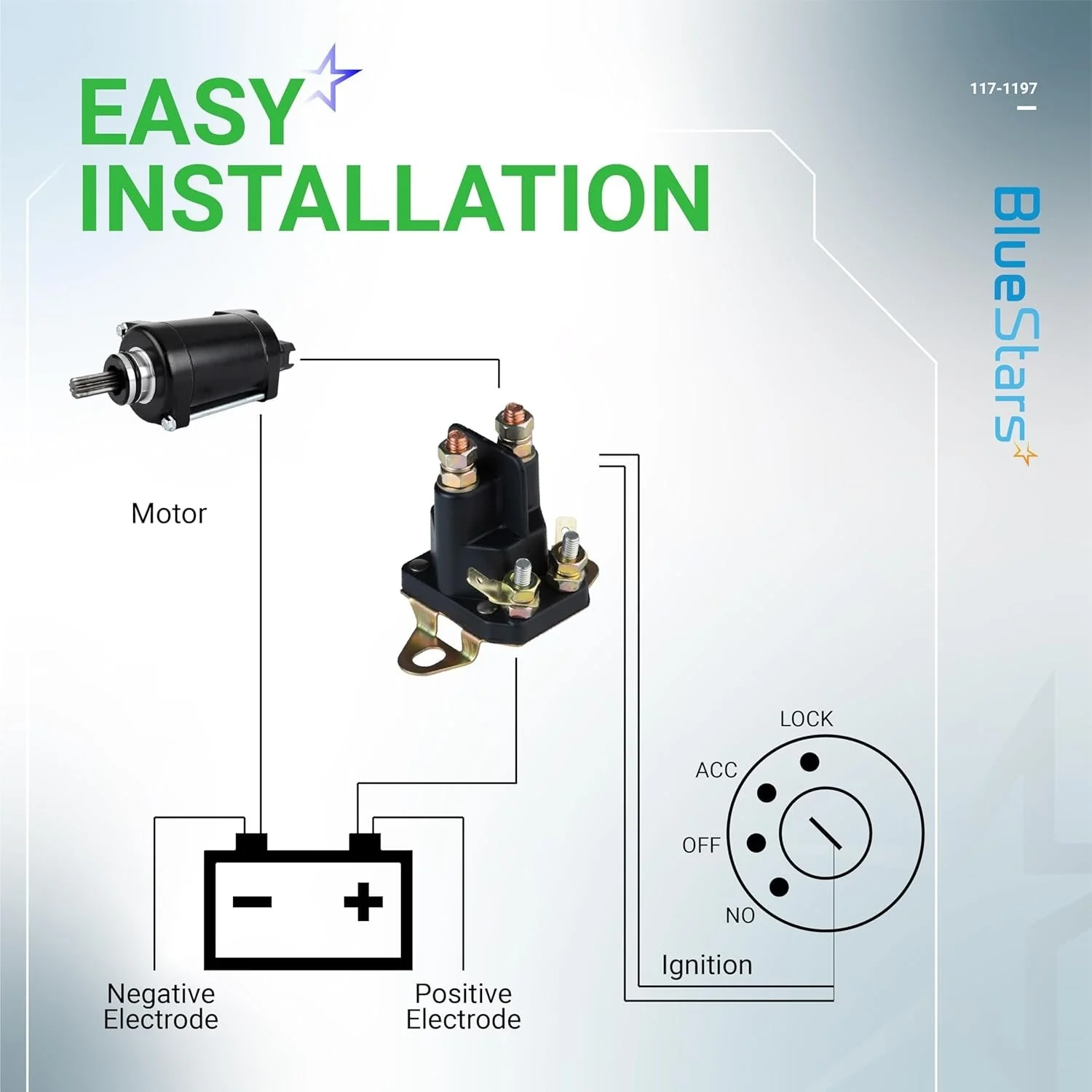

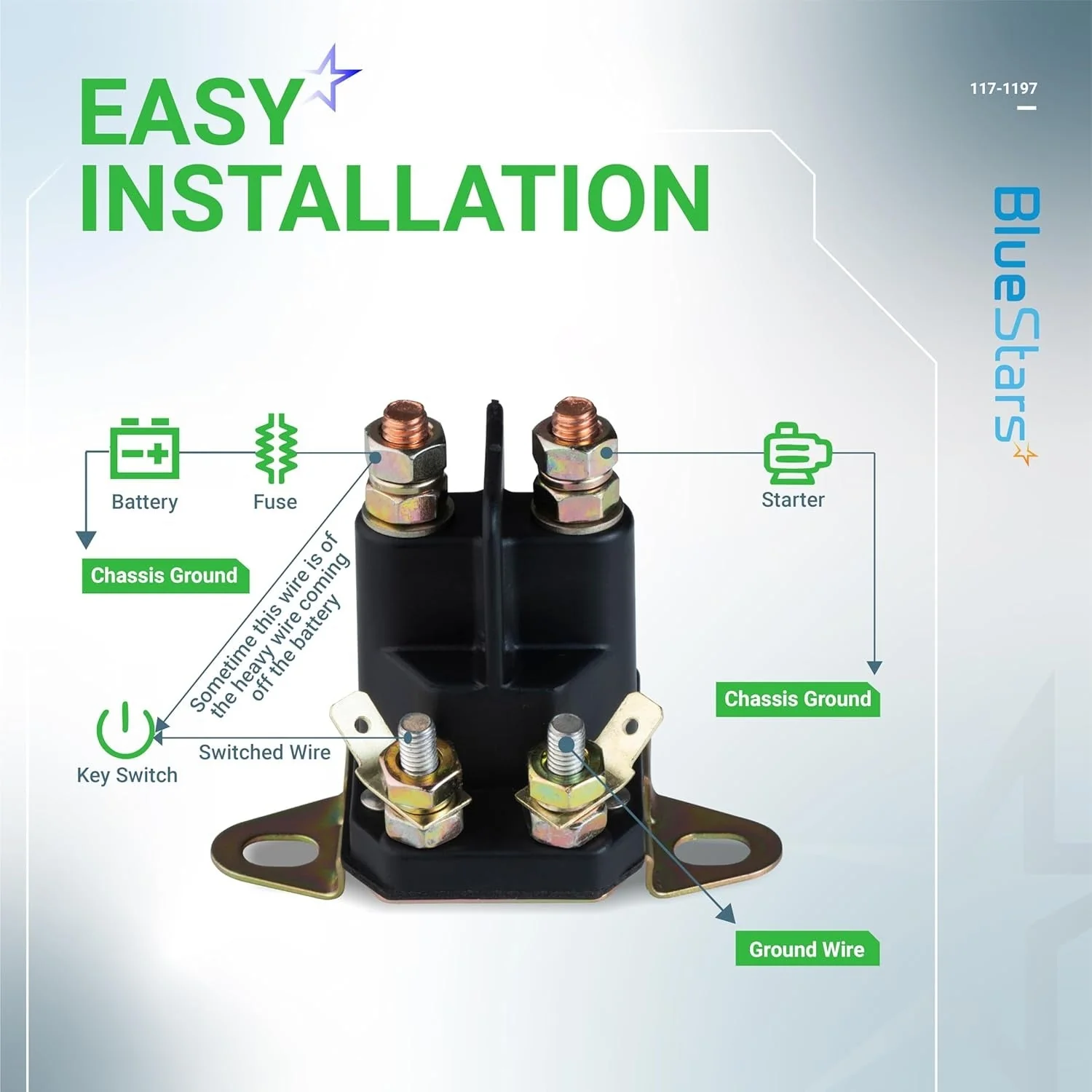

Installation Tips

• Disconnect the negative battery terminal before beginning installation.
• Photograph or label the wiring connections before removing the old solenoid.
• Ensure all electrical connections are clean and secure to prevent poor contact and overheating.
• Mount the solenoid securely to its designated location on the chassis.
