[Lifetime Warranty] 645038 Dishwasher Drain Mesh Micro Filter Compatible

645038 Dishwasher Drain Mesh Micro Filter Compatible

Key Features

• Traps food particles and debris to prevent drain pump clogs
• Maintains dishwasher cleaning performance and water circulation

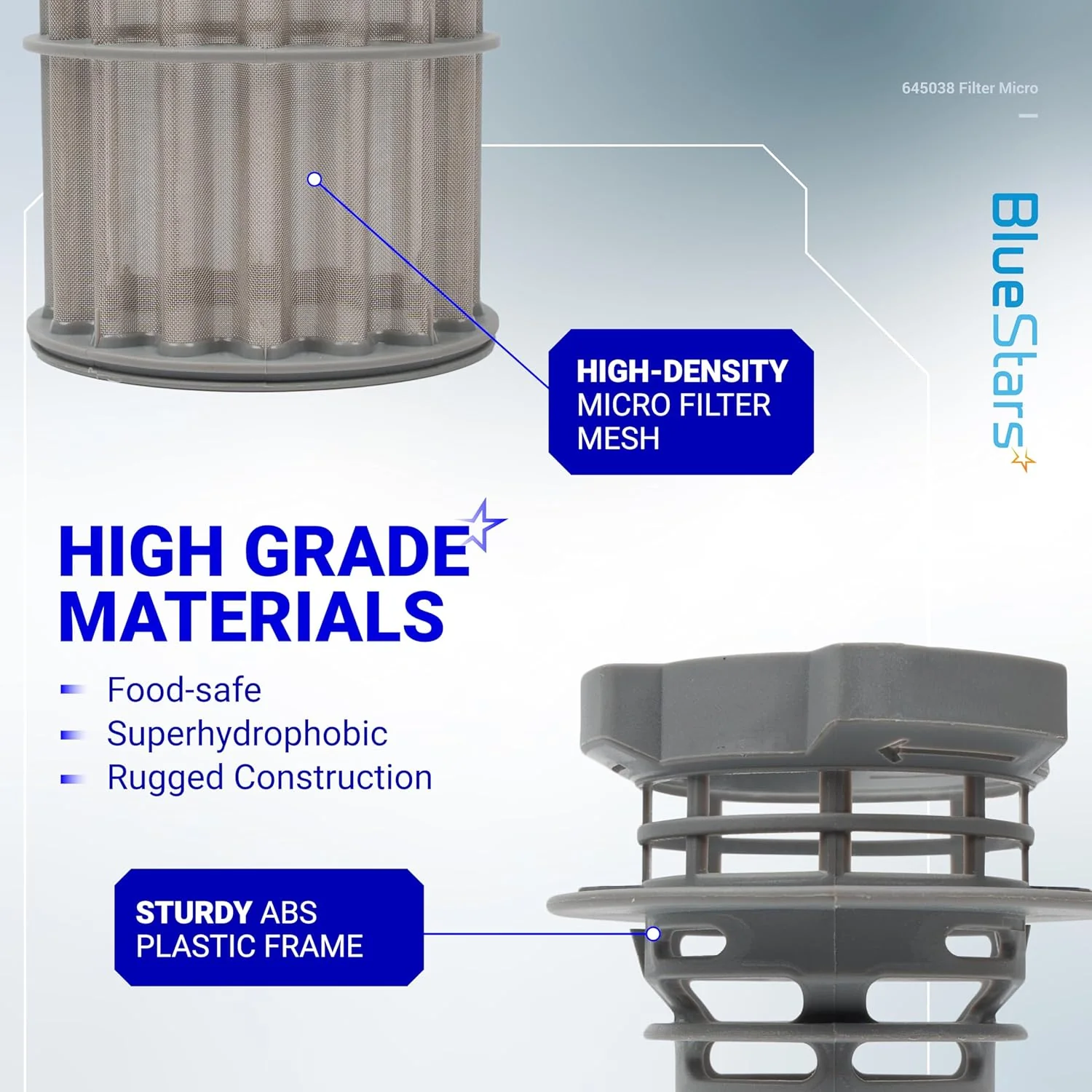

• Two-piece design includes a coarse mesh screen and a fine micro filter
• Direct replacement for specified original equipment parts

Replaces / Cross-Reference Part Numbers

• 645038
• 00645038
• 00651097
• 651097
• 1560725
• AH3479708
• AP4339631

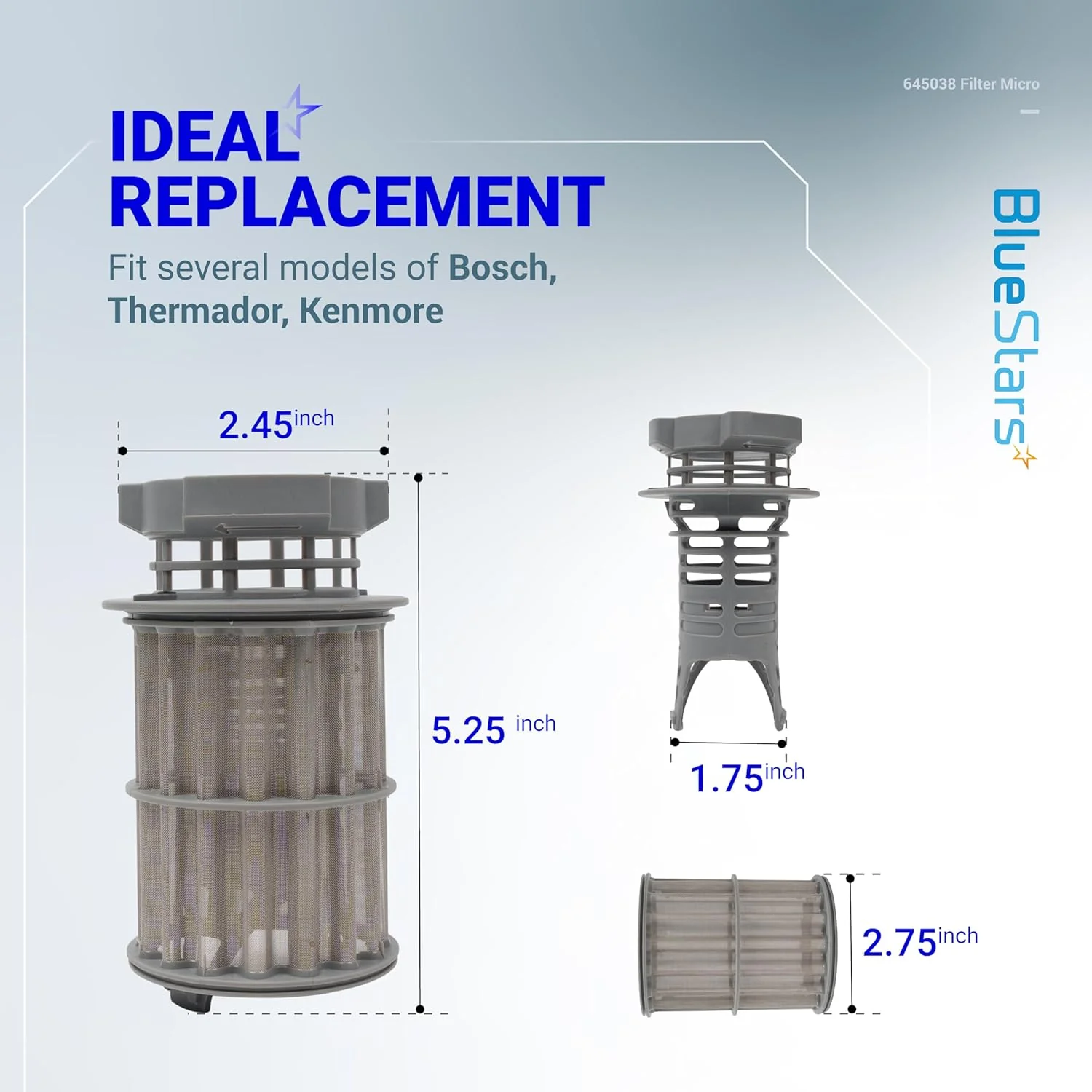

Compatibility & Fitment

• Designed for select Bosch, Thermador, and Kenmore dishwasher models.
• Example Bosch Models: SHX9PT55UC/98, SHEM78WH5N/29, SHE9PT55UC/C9, SGV68U53UC/B4
• Example Thermador Models: DWHD650GFP, DWHD650GPR, DWHD651GFP
• Example Kenmore Models: 630.13003012
• Verify compatibility with your specific appliance model number before ordering.

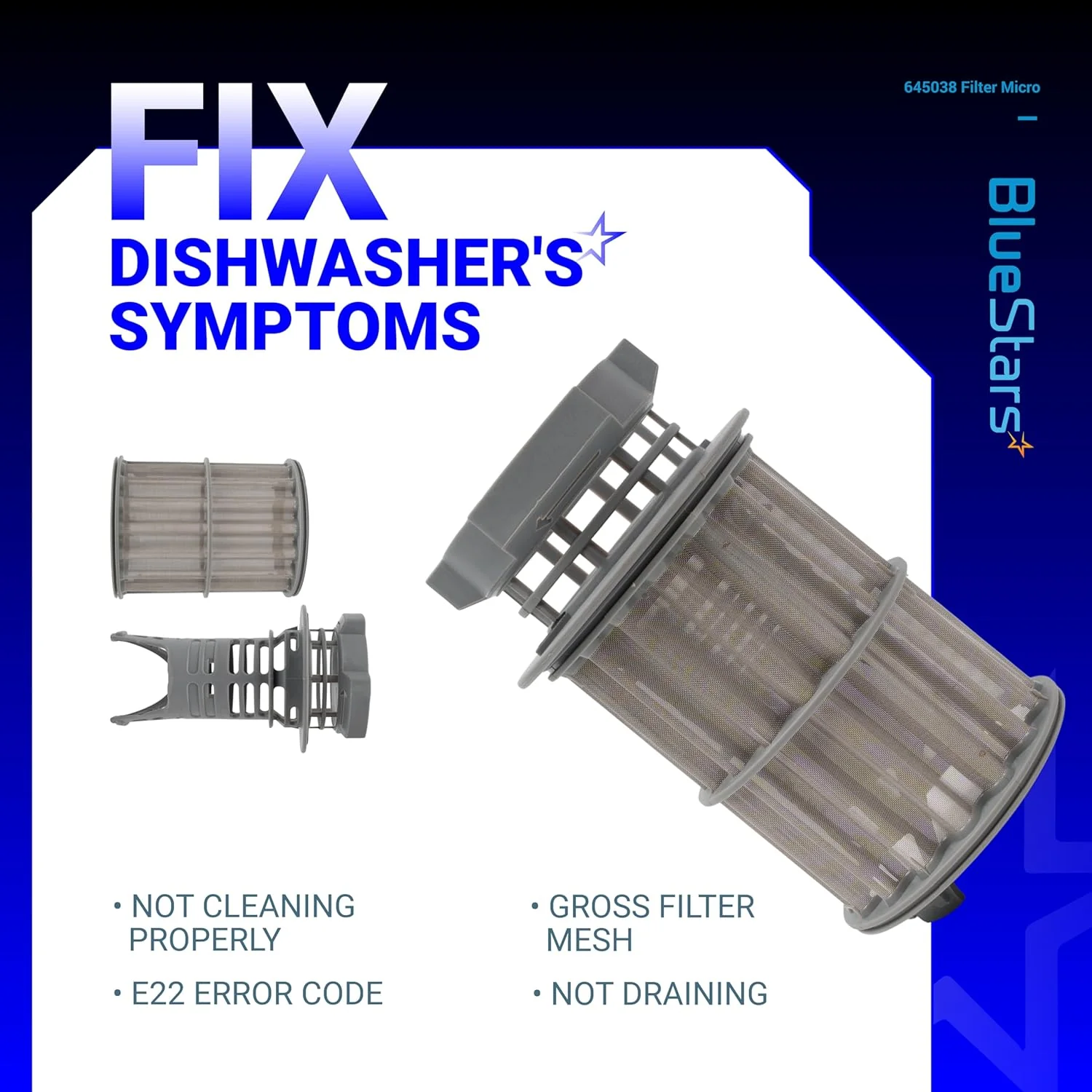

When to Replace

• Visible damage such as cracks, tears, or holes in the mesh
• Filter is warped, broken, or no longer fits securely
• Persistent poor cleaning performance or food debris on dishes
• Water fails to drain properly from the dishwasher tub

Installation Tips

• Disconnect the dishwasher from its power source before servicing.
• Remove the lower dish rack to access the filter assembly at the bottom of the tub.
• Twist the old filter counter-clockwise to unlock and lift it out.
• Clean any debris from the filter housing area before installing the new part.
• Insert the new filter and twist clockwise to lock it securely in place.
