[Lifetime Warranty] 21352320 Washer Drive Belt

21352320 Washer Drive Belt

Key Features

• Connects the drive motor to the transmission to enable agitating and spinning

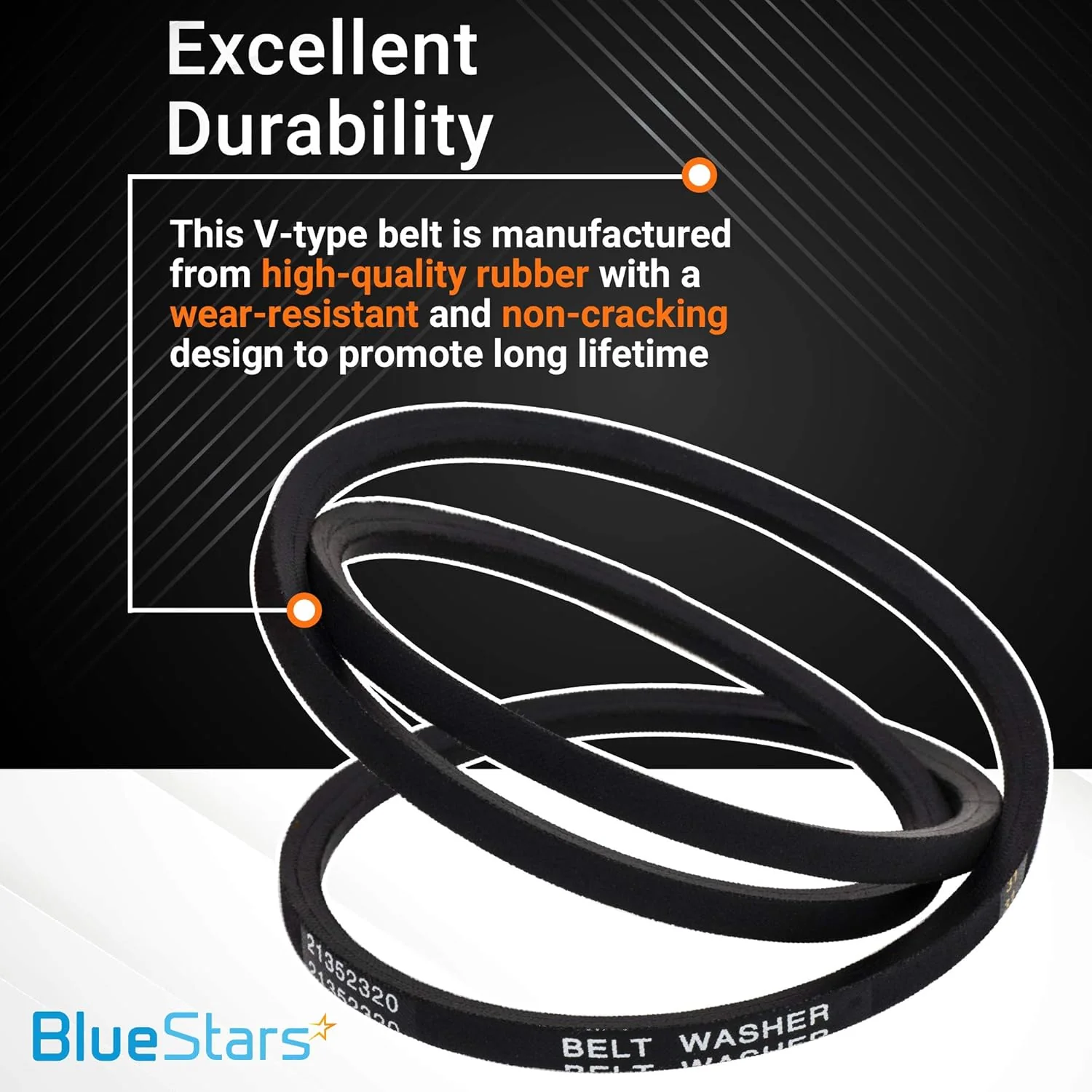

• Material: Rubber
• Color: Black

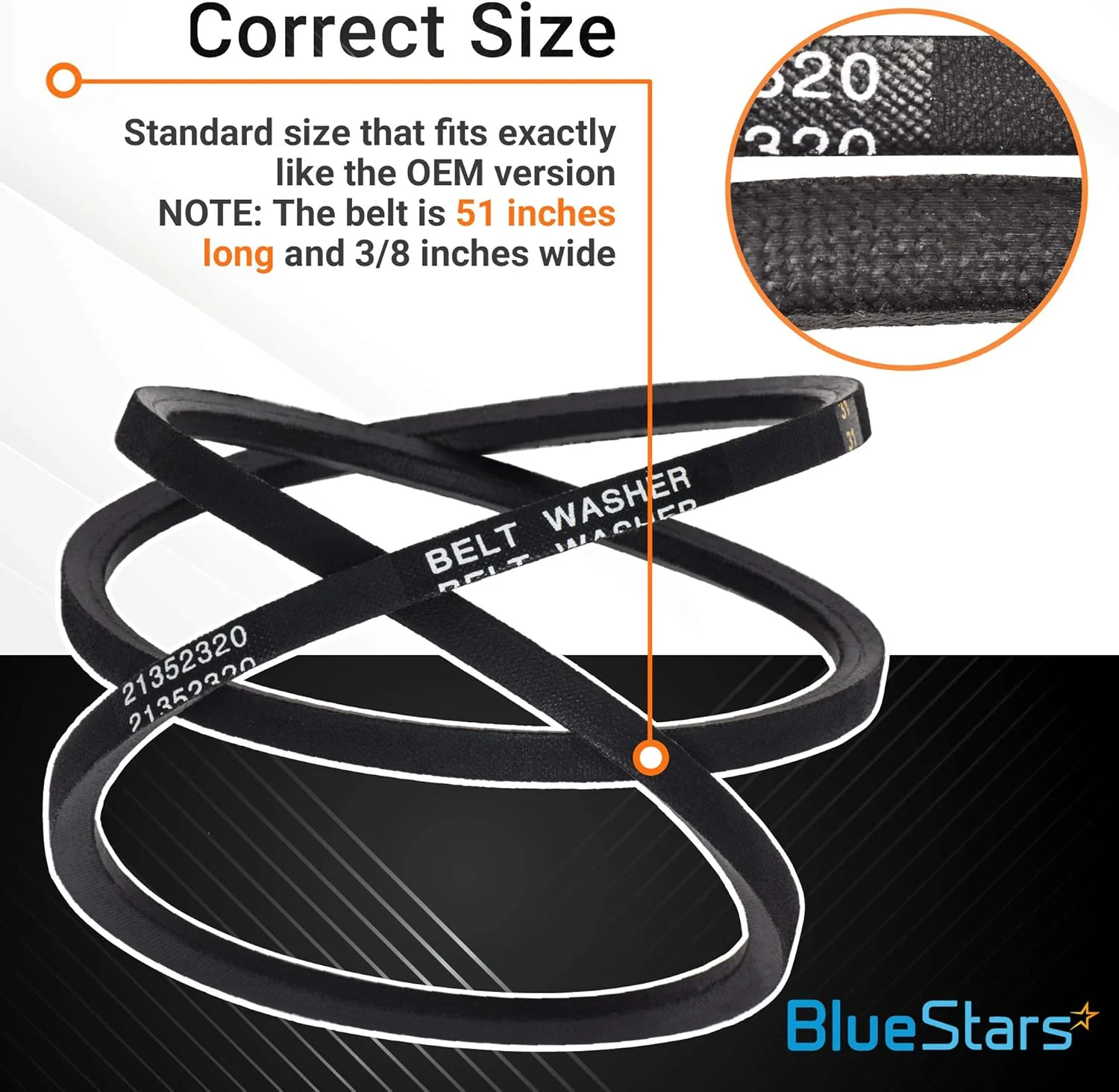

• Approximate Dimensions: 51-3/16" L x 3/8" W

Replaces / Cross-Reference Part Numbers

• WP21352320
• 21352320
• AP6005822
• 35-2320
• 21001478
• SPZ1295
• 35-3662
• LB132

Compatibility & Fitment

• Fits select washing machine models from brands including Maytag, Whirlpool, Admiral, Amana, Crosley, Hoover, Jenn-Air, Magic Chef, and Norge.
• Always verify fitment with your specific appliance model number before ordering.

When to Replace

• The washer will not agitate or spin
• Squealing or thumping sounds are heard during cycles
• Visible damage to the belt, such as cracks, fraying, or breakage
• A burning smell is present near the motor

Installation Tips

• Disconnect the washer from power and water sources before starting the repair.
• Access the belt by removing the washer's front or rear access panel.
• Observe the path of the old belt around the motor and transmission pulleys before removing it.
• Install the new belt by routing it around the pulleys. Ensure it is correctly seated in the grooves.
