[Lifetime Warranty] 8318084 Washer Door Assembly

8318084 Washer Door Assembly

Key Features

• Direct-drive washer lid switch assembly
• Prevents the washer from spinning when the lid is open

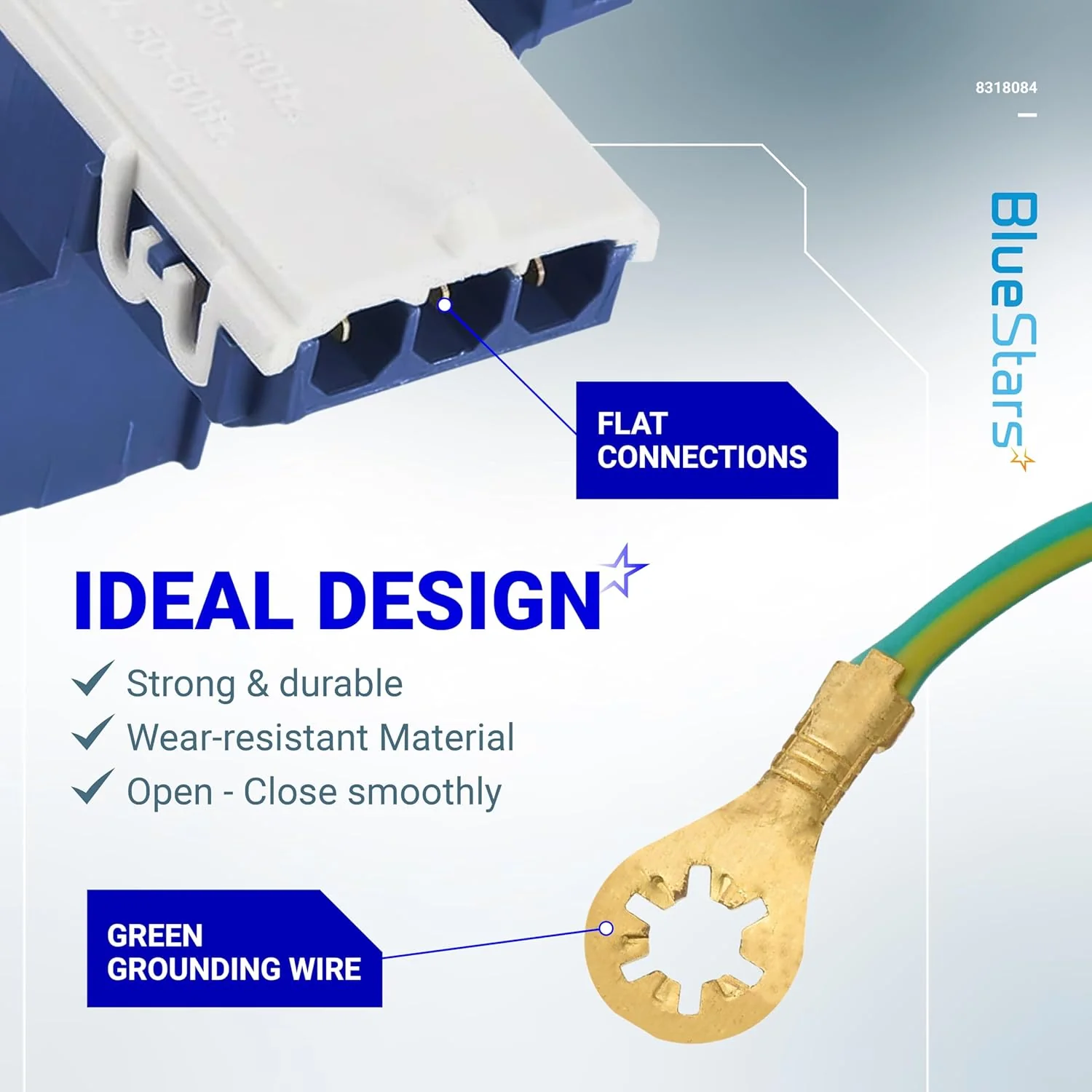

• Includes one lid switch assembly with grounding wire
• Housing Material: Plastic
• Color: Gray / White
• Electrical Specifications: 125-250V, 50/60Hz

Replaces / Cross-Reference Part Numbers

• 8318084
• WP8318084

Compatibility & Fitment

• Fits direct-drive washing machines from brands including Whirlpool, Kenmore, Maytag, and Roper.
• Compatible with models: 11016102500, 11016102501, 11016102502, 1CLBR5432PQ0, 1CLBR5432PQ1, 1CLSQ9549PG0, and others.

When to Replace

• Washer will not start
• Washer will not spin
• Washer will not agitate

Installation Tips

• Disconnect the washer from power and water sources before beginning installation.
• A 5/16-inch nut driver is typically required for installation.
• The switch is located under the main top panel of the washer.
