[Lifetime Warranty] 691035 Fuel Filter 1/4" Inline

691035 Fuel Filter 1/4" Inline

Key Features

• Fits standard 1/4 inch fuel lines
• Inline design for simple installation
• Filters fuel particles to 40-60 microns

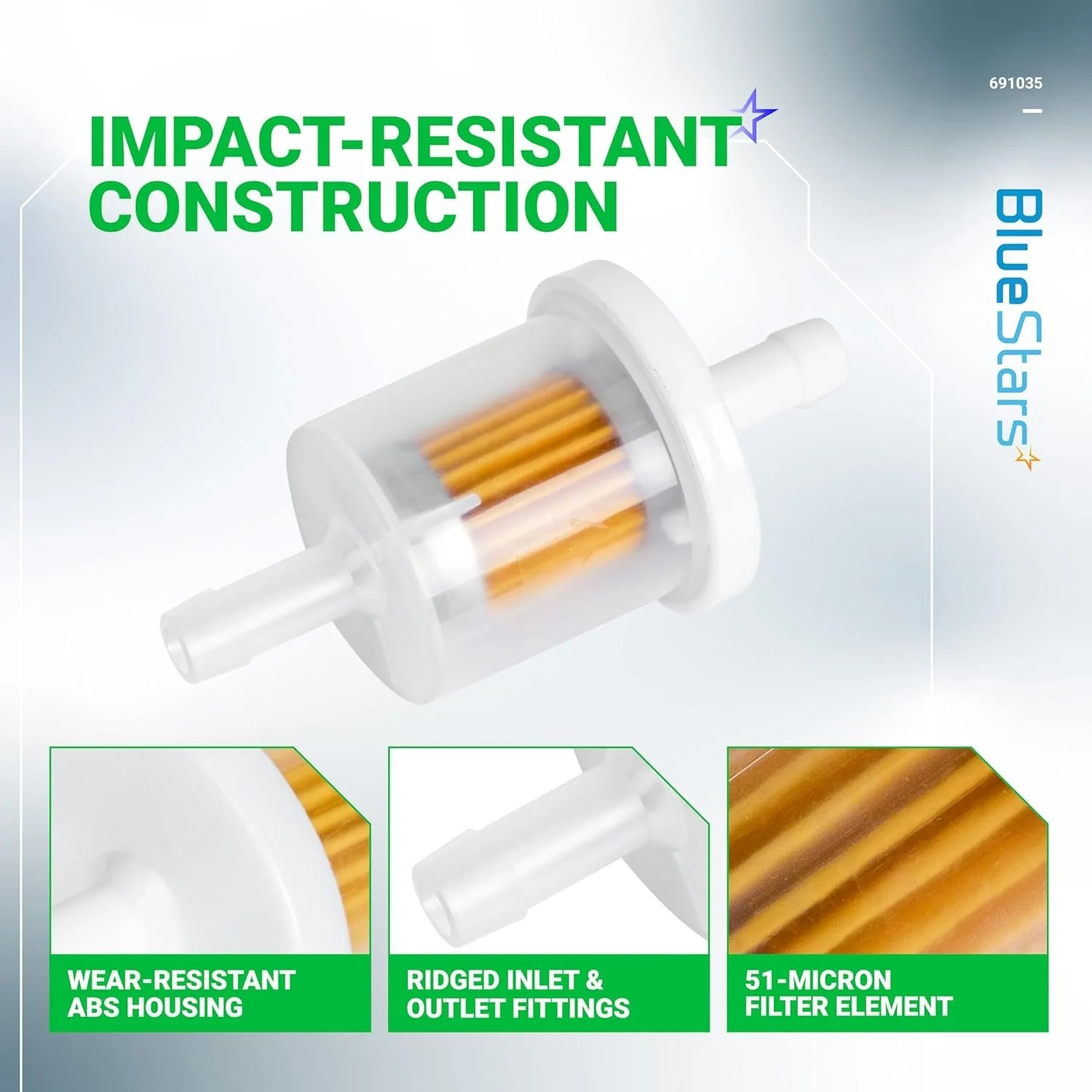

• Durable plastic housing
• Suitable for engines equipped with a fuel pump

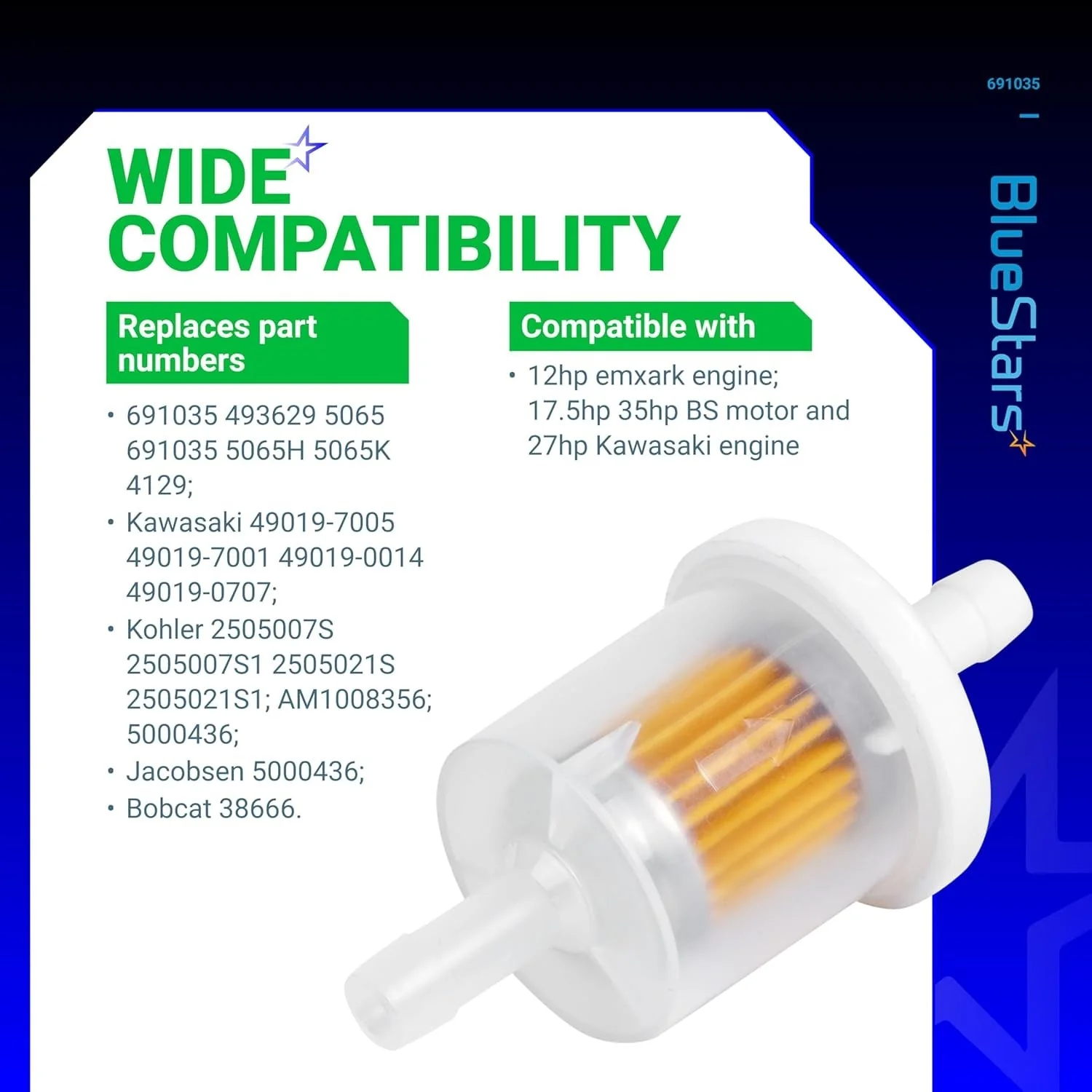

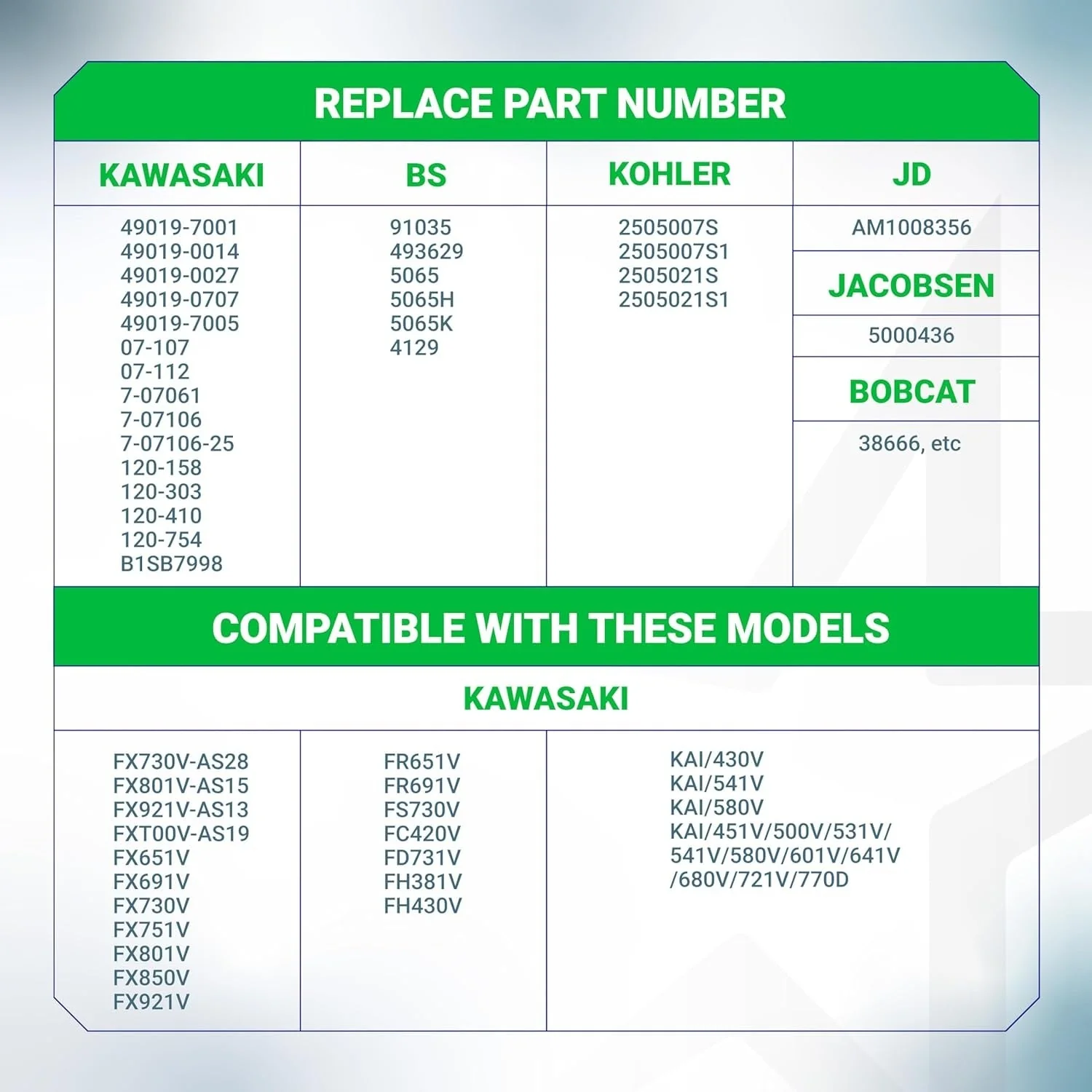

Replaces / Cross-Reference Part Numbers

• Briggs & Stratton: 691035, 493629, 695666, 84001895
• Other: 49019-7001, 5065, 5065K

Compatibility & Fitment

• Designed for Briggs & Stratton engines including 12hp, 17.5hp, 27hp, and 35hp models
• Universal fit for a wide range of small engines found on lawnmowers, generators, ATVs, and other power equipment using 1/4 inch fuel line

When to Replace

• Engine experiences hard starting, sputtering, or stalling
• Noticeable loss of engine power or performance
• Filter element appears clogged, dirty, or discolored
• As part of scheduled annual or seasonal engine maintenance

Installation Tips

• Note the fuel flow direction arrow on the old filter before removal
• Install the new filter with the arrow pointing towards the carburetor
• Ensure fuel line clamps are secure on both ends of the filter to prevent leaks
• Pinch the fuel line or drain the fuel tank to minimize spillage during replacement
