[Lifetime Warranty] Mower Deck Belt M154296 M158131 152.3" x 0.5"

Mower Deck Belt M154296 M158131 152.3" x 0.5"

Key Features

• Type: Mower Deck Belt

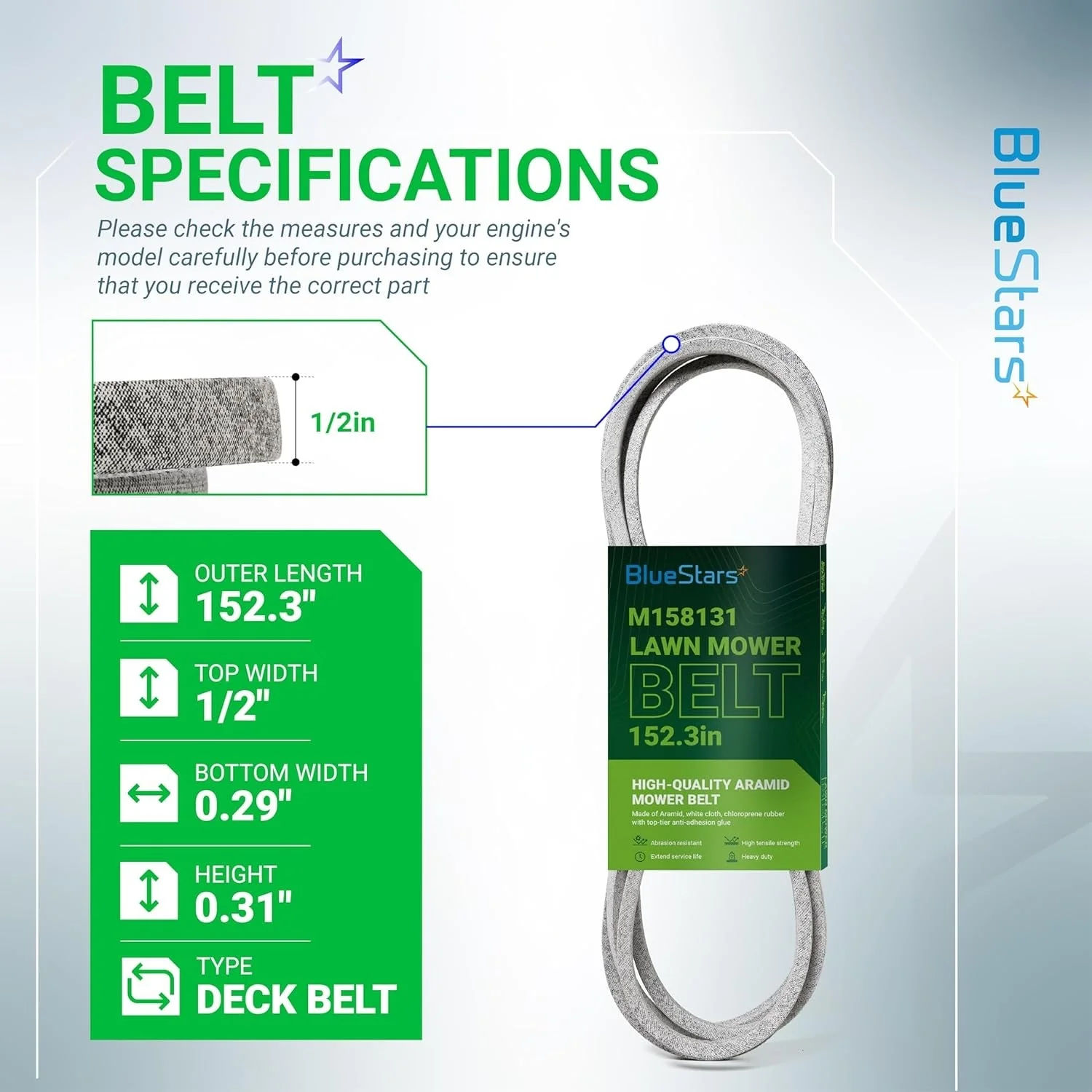

• Dimensions: 152.3" (Length) x 0.5" (Width)

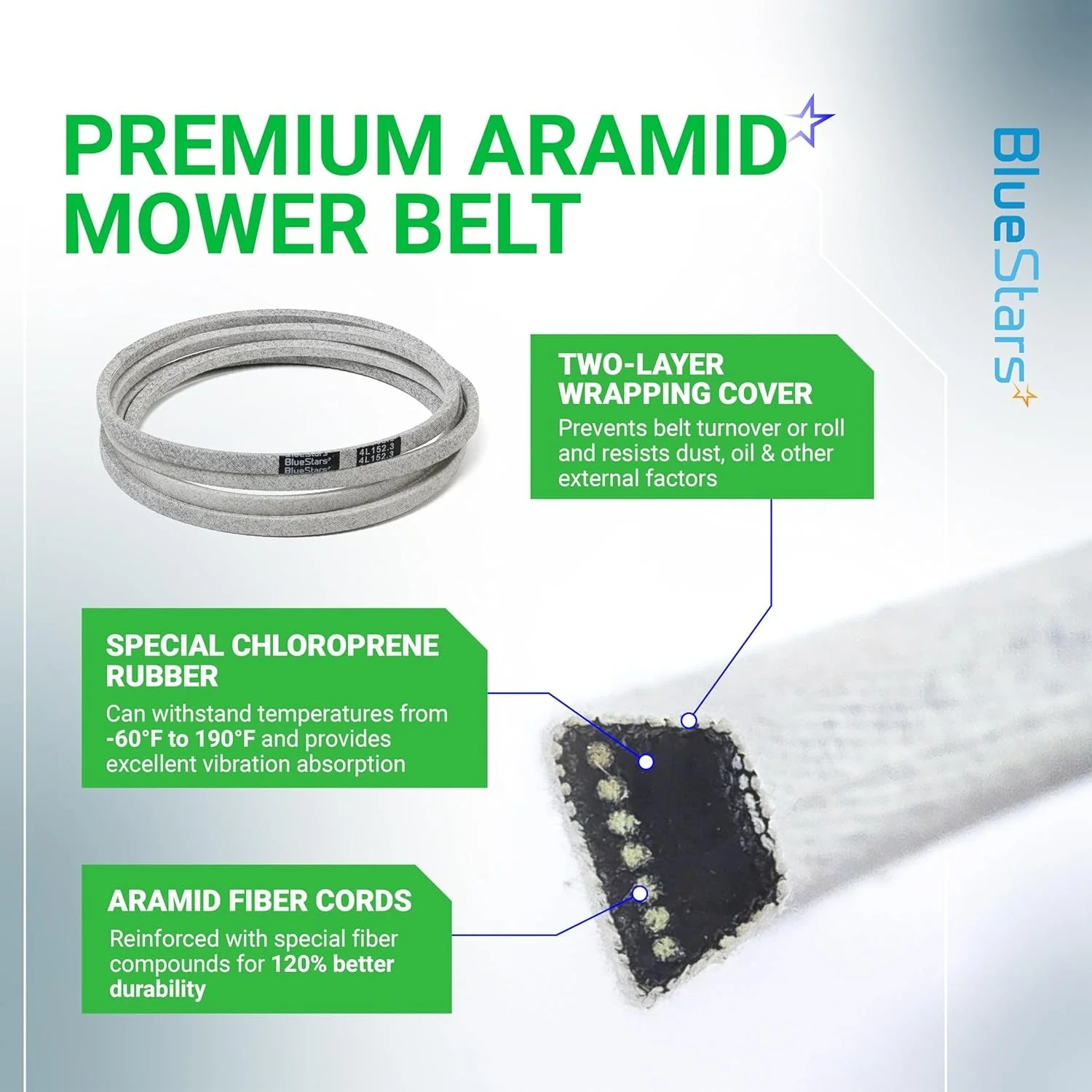

• Construction Material: High-strength aramid cord for durability and resistance to stretching
• Function: Transfers power from the engine pulley to the mower deck spindles to rotate the cutting blades

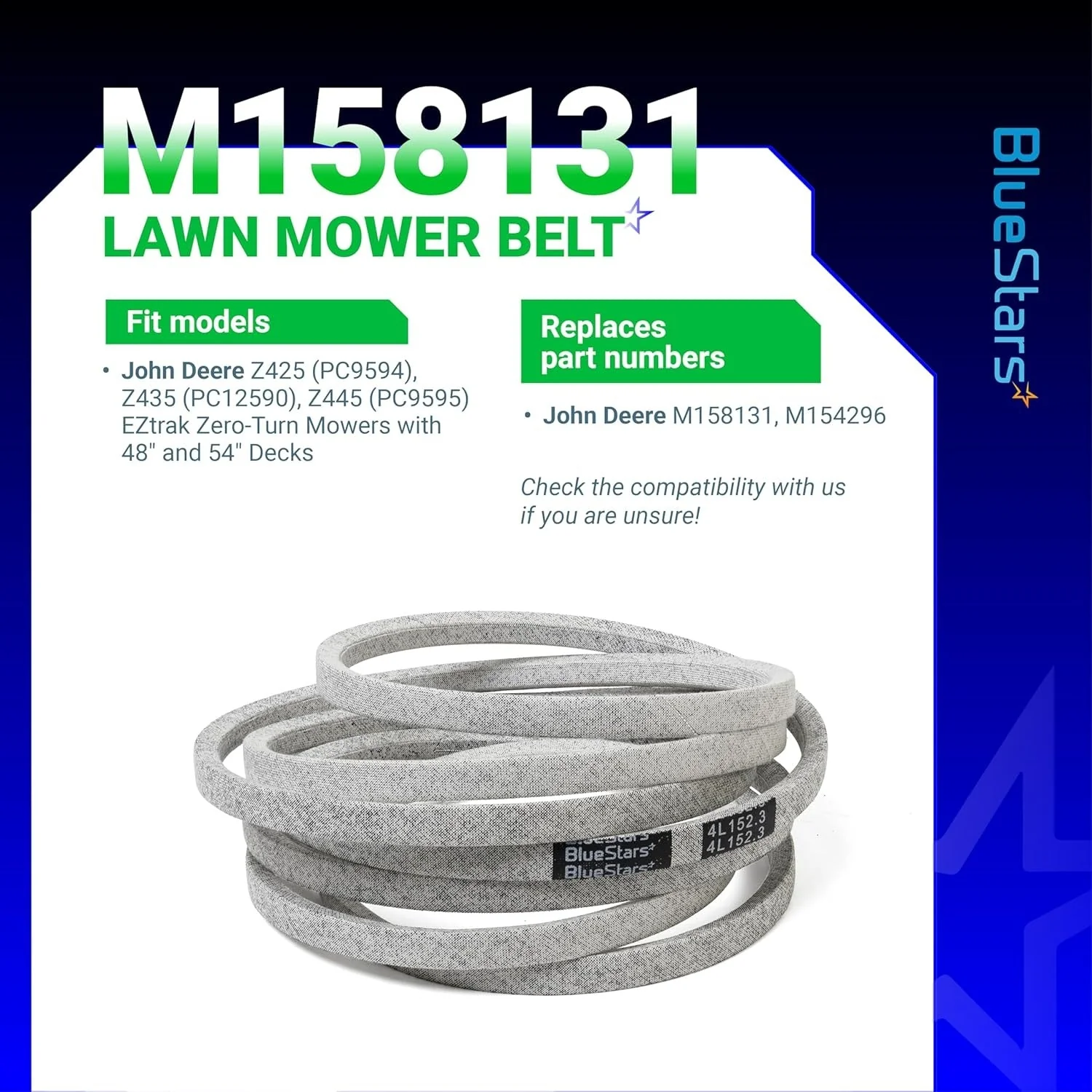

Replaces / Cross-Reference Part Numbers

• John Deere: M154296, M158131

Compatibility & Fitment

• Brand: John Deere
• Mower Series: EZtrak, ZTrak Zero-Turn
• Fits Models: Z425, Z435, Z445
• Deck Sizes: 48 inch, 54 inch

When to Replace

• Visible signs of wear such as cracking, fraying, or glazing on the belt surface
• Belt slips during operation, resulting in inconsistent blade speed or poor cut quality
• Noticeable stretching or loss of proper tension
• Audible squealing or chirping from the deck area during engagement

Installation Tips

• Before starting, disconnect the spark plug wire for safety
• Consult the mower's operator manual for the specific belt routing diagram
• Ensure all pulleys are clean, spin freely, and are correctly aligned
• After installation, verify the belt is properly seated in all pulley grooves
• Check for correct tension; the belt should not be too tight or too loose
