[Lifetime Warranty] WPW10181986 W10181986 Range Oven Sensor

WPW10181986 W10181986 Range Oven Sensor

Key Features

• Measures internal oven temperature for accurate heat regulation.
• Communicates temperature readings to the main control board.
• Direct replacement for specified models to restore proper oven function.

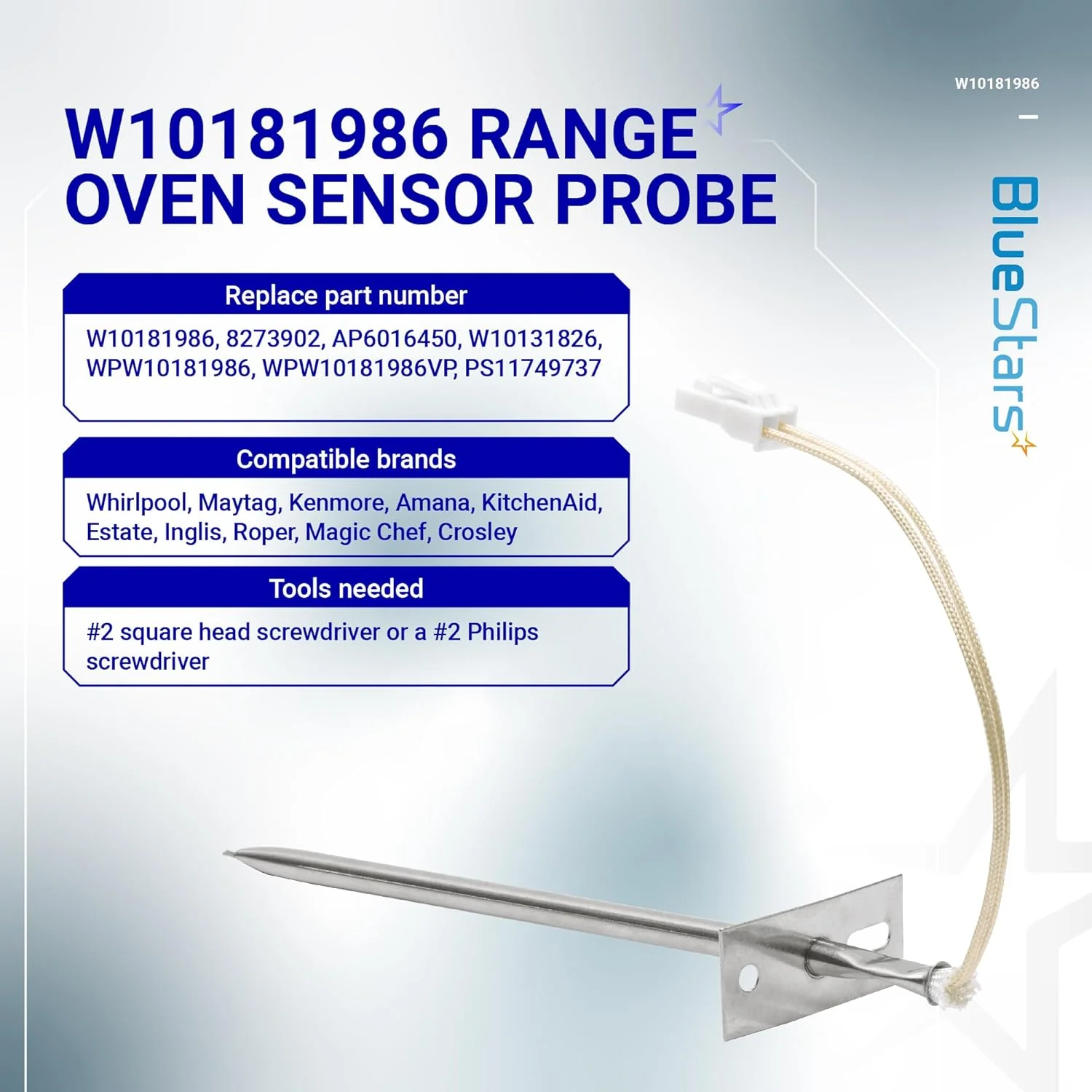

Replaces / Cross-Reference Part Numbers

• WPW10181986
• W10181986
• W10131826
• 8273902
• AP6016450
• PS11749737

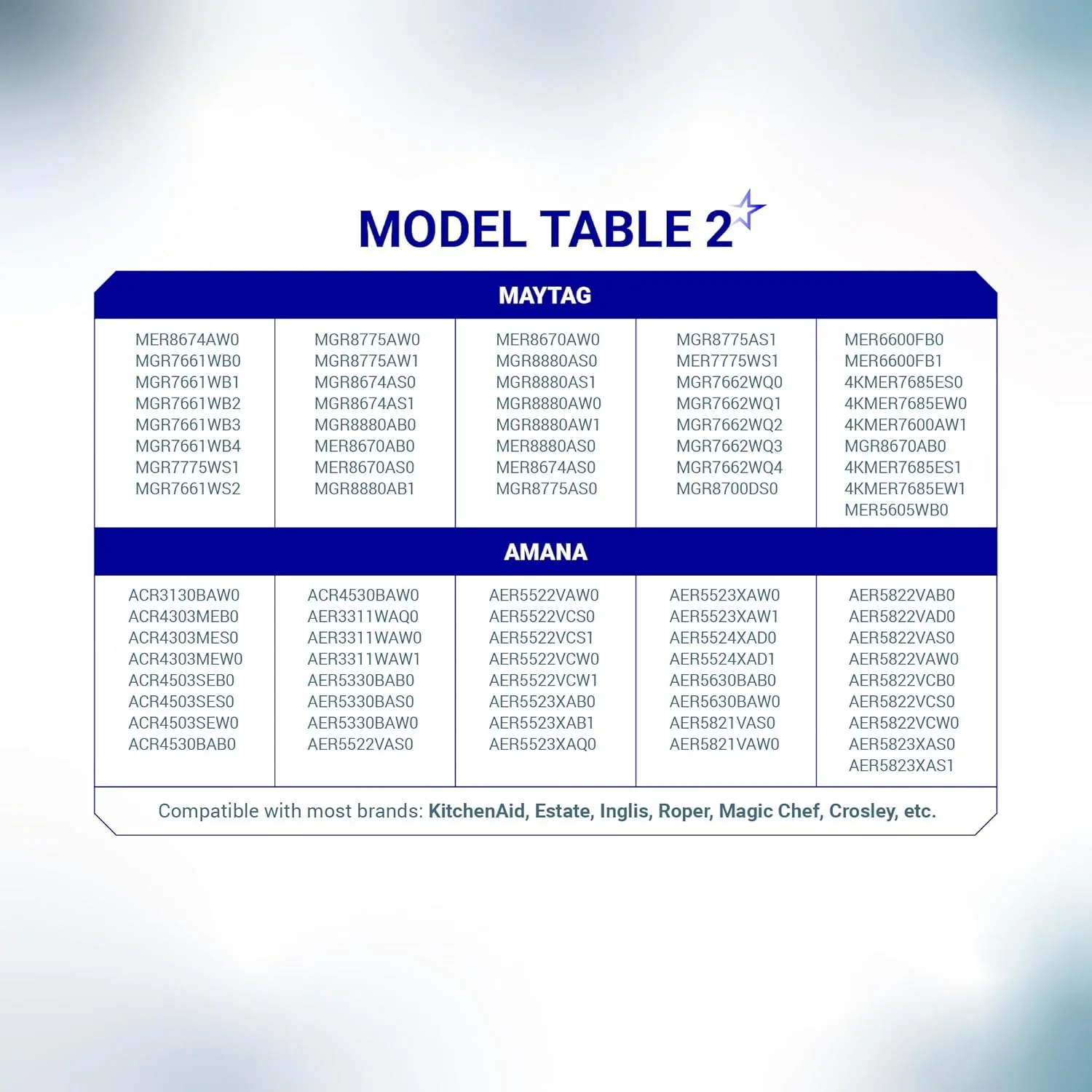

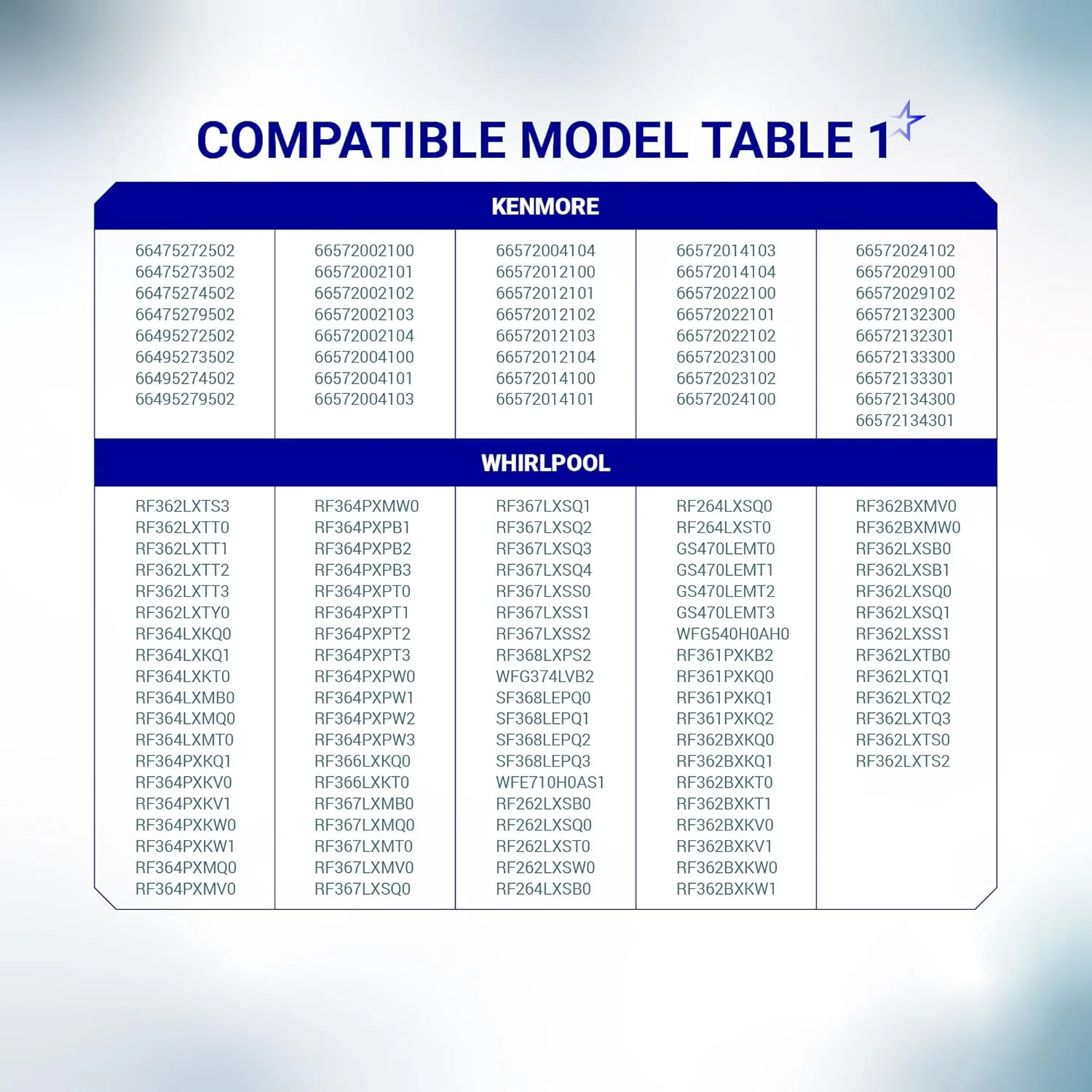

Compatibility & Fitment

• Fits select range and oven models from brands including Whirlpool, Maytag, Kenmore, and Amana.
• Confirm fitment by cross-referencing your appliance's model number with the part numbers listed.

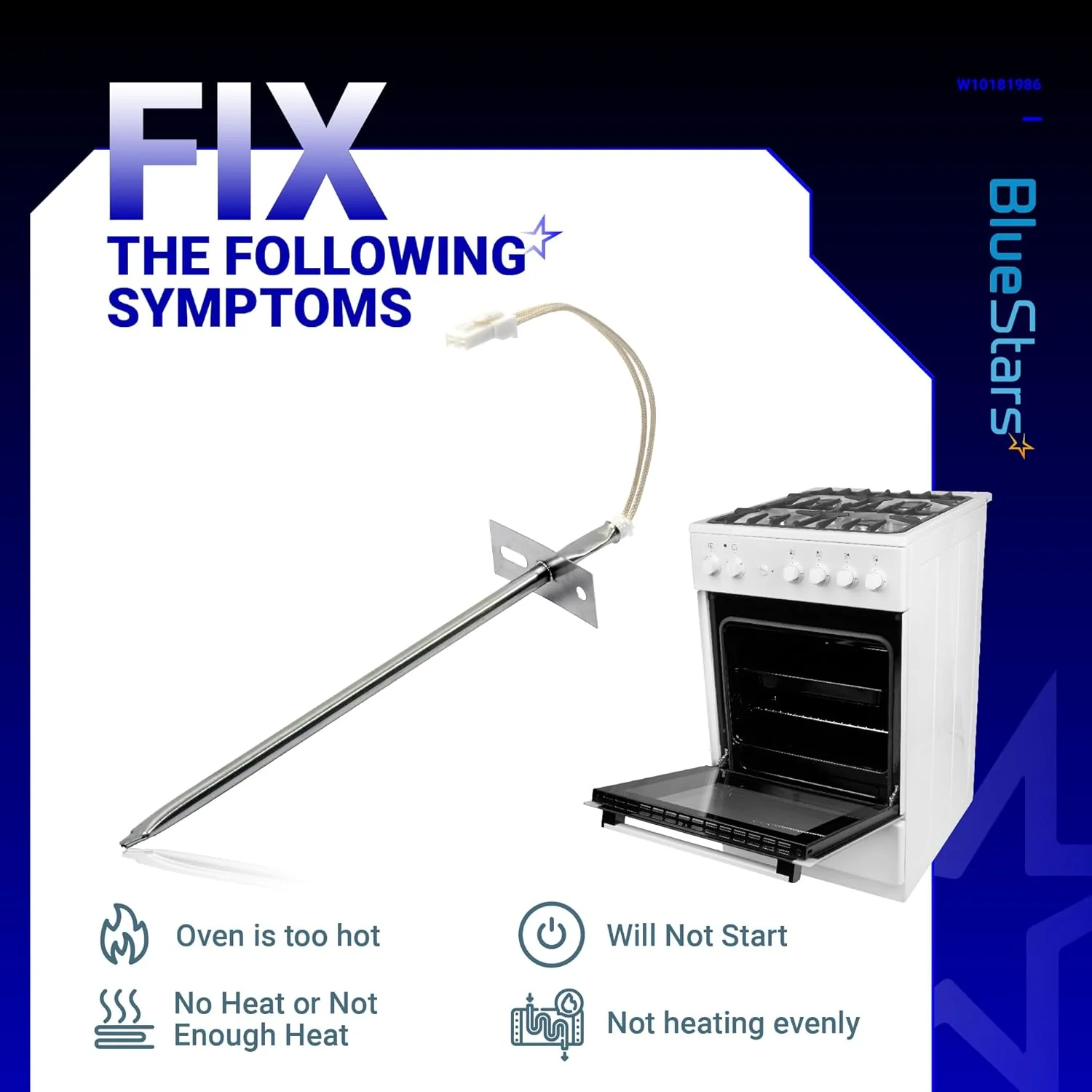

When to Replace

• Oven temperature is inaccurate or inconsistent.
• Oven fails to heat to the set temperature.
• Food is cooking unevenly, burning, or undercooking.
• The oven control displays a fault code related to the sensor.
• The existing sensor's resistance measurement is out of specification (typically 1000-1200 Ohms at room temperature).

Installation Tips

• Disconnect the range from its power source before beginning installation.
• The sensor is typically located on the rear interior wall of the oven cavity.
• A Phillips head screwdriver is generally the only tool required for removal and installation.
